Figure 1
From: A Pixelated Microwave Near-Field Sensor for Precise Characterization of Dielectric Materials

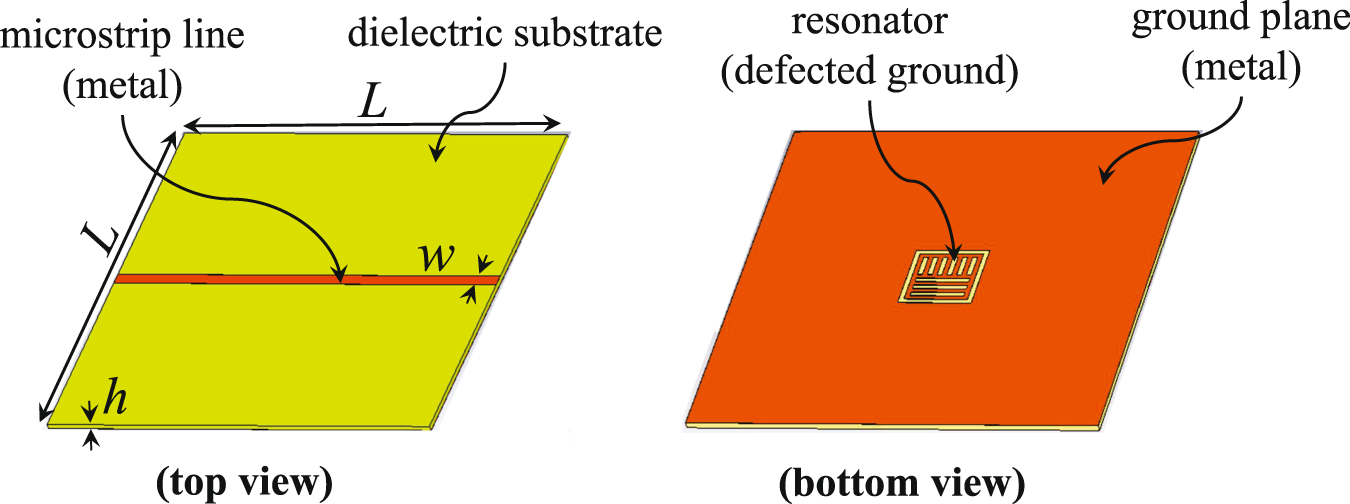

Top and bottom views of a microstrip transmission line loaded with a modified resonator based on CSRR. L = 50 mm, w = 1.1 mm, and h = 0.5 mm.
