Figure 4 | Scientific Reports

Figure 4

From: Tracking a mass mortality outbreak of pen shell Pinna nobilis populations: A collaborative effort of scientists and citizens

Figure 4

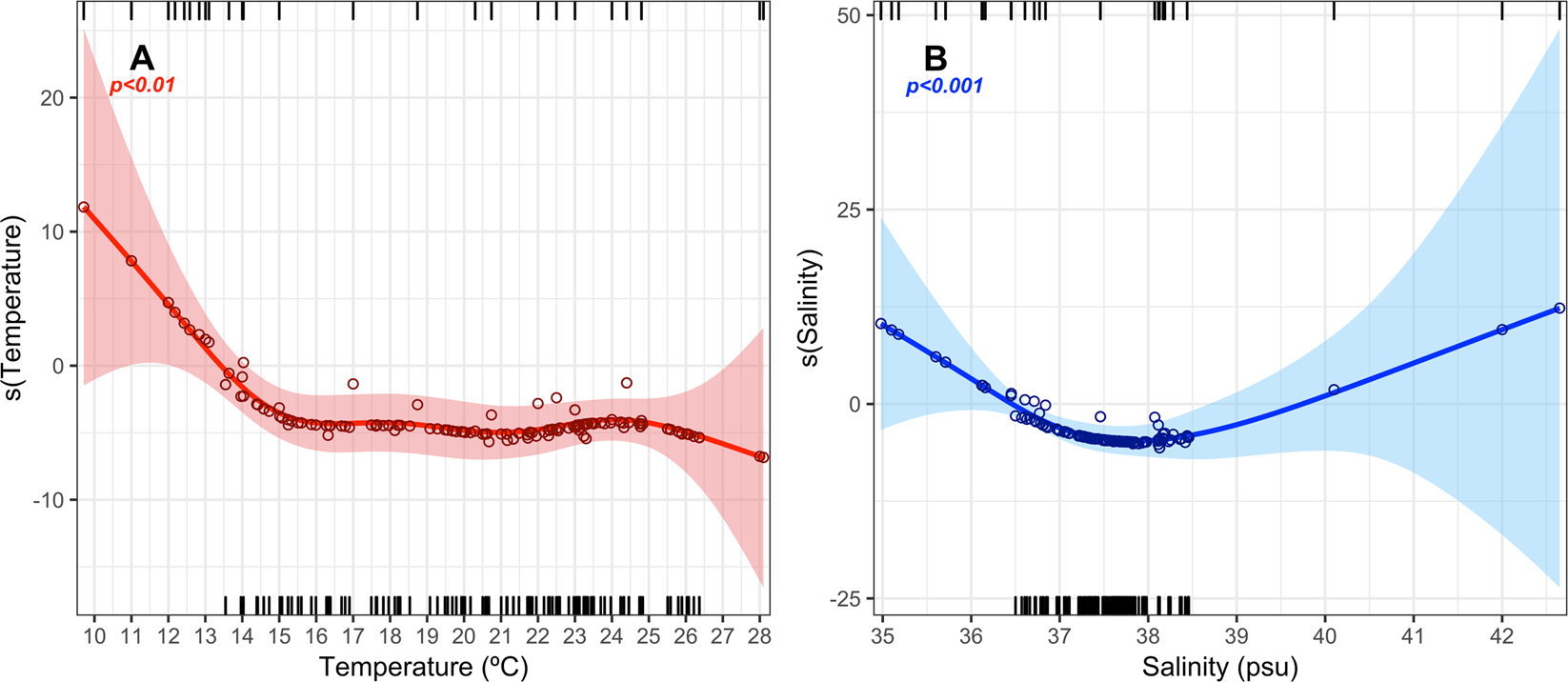

Partial smoothed effect of Temperature (A) and Salinity (B) on the disease expression (note that zero marks the shift on the response; >0 corresponds to higher probability of disease absence, while <0 to higher probability of disease expression). Fitted lines (solid line), 95% confidence intervals (shaded area) and partial residuals (hollow points) are shown for univariate effects. Top and bottom tick marks on x-axis represent values of the observed covariable for the absence and presence of signs of infection respectively.
