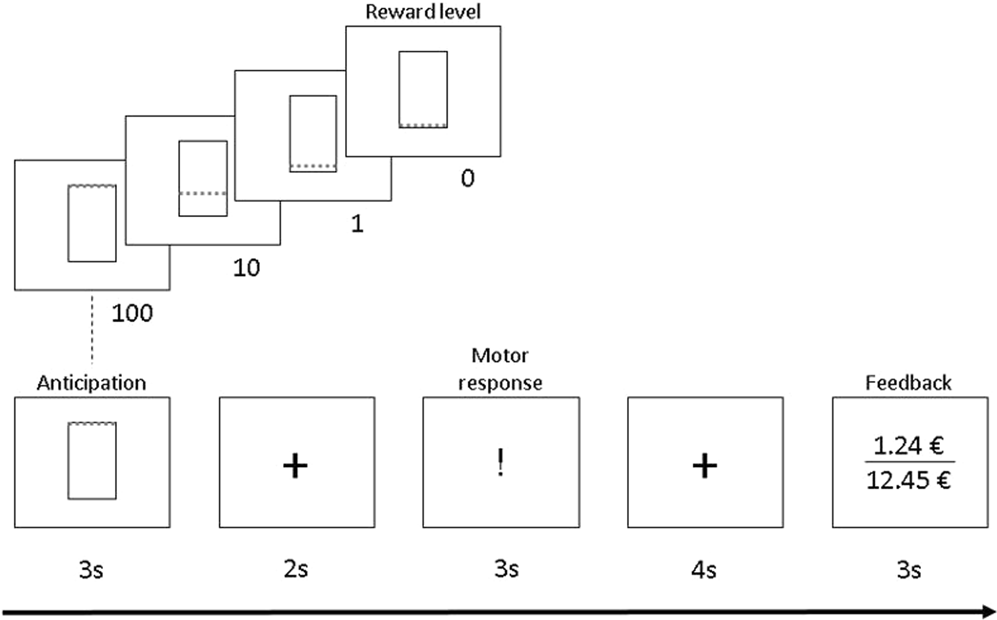

Figure 1

Instrumental motivation task. Instrumental motivation task during event-related functional MRI (fMRI). During the anticipation phase a visual cue was presented for 3 s to inform the participant about the reward level of this trial (reward levels: 0 [no reward], 1, 10, 100). The motor (or instrumental) response phase started after a 2 s fixation period. Monetary reward per trial increased with reward level and higher effort and was determined by multiplying number of button presses × reward level × an individual adjustment factor (calculated based on the individual maximum #bp in the test run; for details see Bühler and colleagues, 2010). Acoustic feedback for button presses was provided through headphones. After another fixation period of 4 s, feedback was provided for 3 s by displaying the amount of money gained in this trial and the cumulative amount. Between trials, participants fixated on crosshairs for 3 s (75%) or 7.44 s in 25% of all trials, which improves design efficiency by jittering. The fMRI main run had a total duration of 15.5 min and comprised 48 trials in total (4 reward levels × 12 pseudorandomized repetitions; SM 2).
