Figure 3

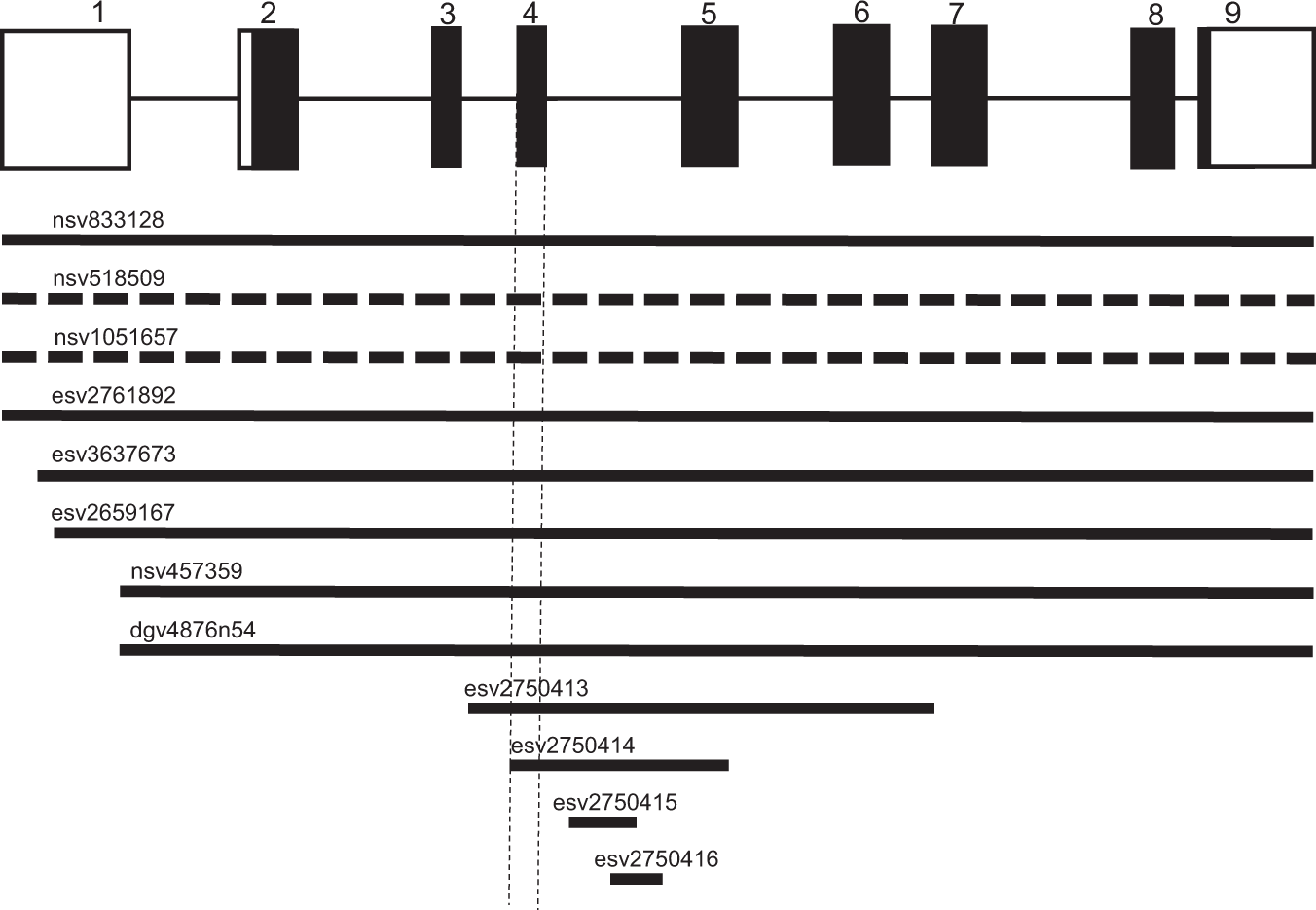

The CNVs in DNASE1. The genomic structure of the human DNase I gene is based upon the NCBI Reference Sequence: NG_009285.1. All the CNVs in the gene registered in the Database of Genomic Variants (http://dgv.tcag.ca/gb2/gbrowse/dgv2_hg38/) are shown. The solid and dashed bars indicate loss and gain of copy, respectively, in the CNVs. The region of the gene shown by the dashed lines is the target region used for Q-PCR analysis of each gene.
