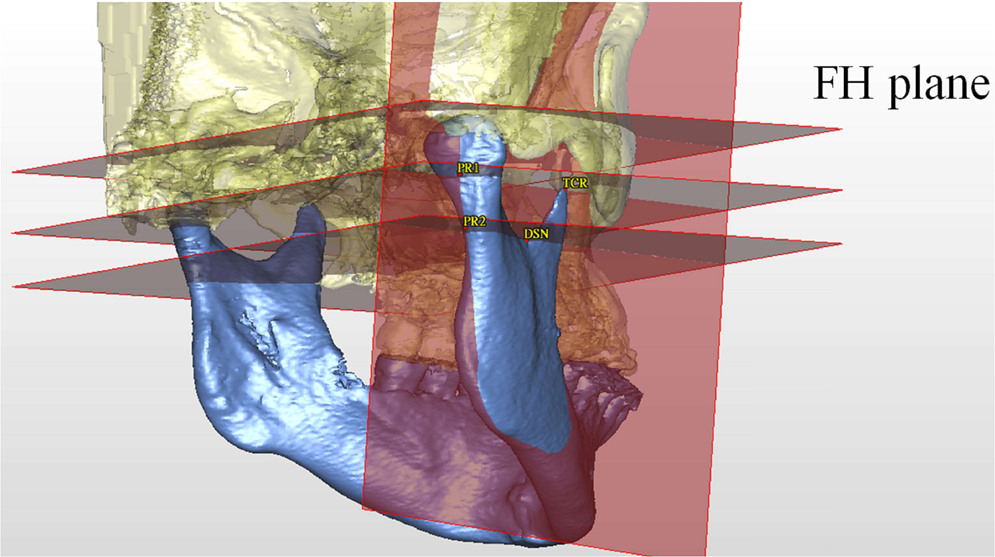

Designing the representing plane for proximal ramus segment. Landmarks showed the tip of coronoid process (TCR), deepest point of sigmoid notch (DSN), PR1, and PR2 (definitions in Table 5). The plane of proximal segment (PSP) was defined by PR1, PR2, and DSN points. FH plane means Frankfurt horizontal plane.
