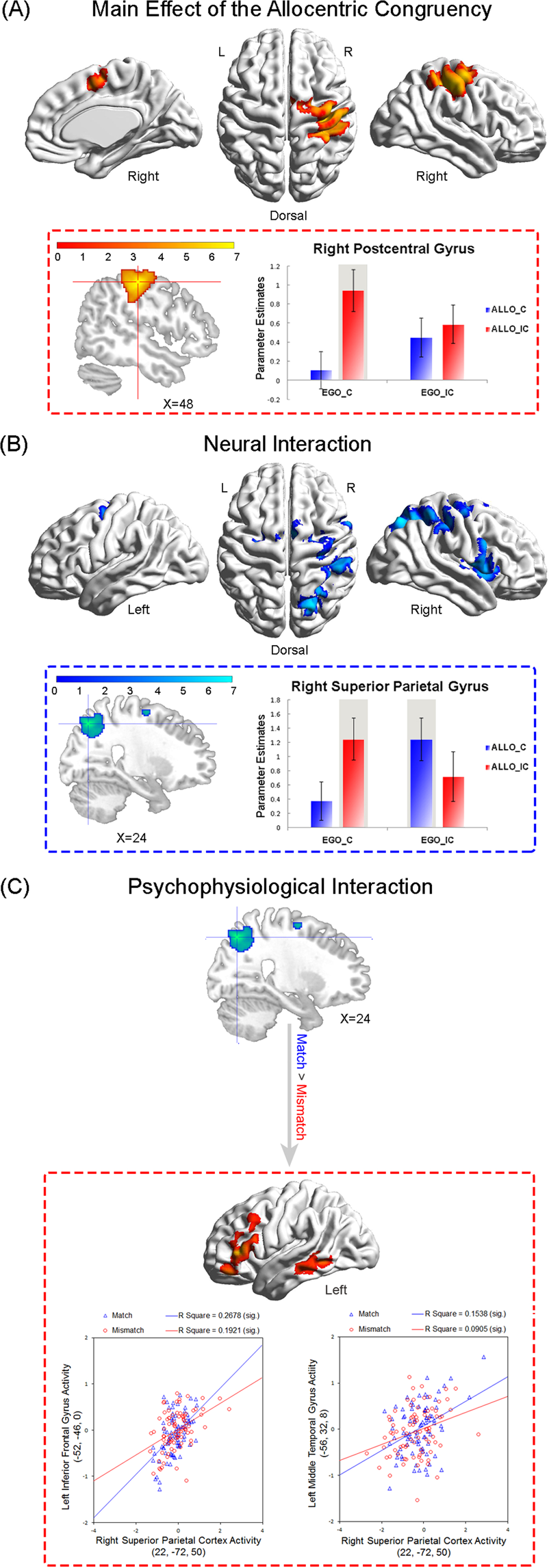

Figure 2
(A) Main effect of the allocentric congruency. Brain areas activated by allocentric incongruent conditions relative to the allocentric congruent conditions irrespective of the egocentric congruency, i.e., AlloIC (EgoC + EgoIC) > AlloC (EgoC + EgoIC). Mean parameter estimates extracted from the activated cluster are shown as a function of the four experimental conditions. (B) Neural interactions between the egocentric and the allocentric congruency, i.e. the neural interaction contrast “EgoC (AlloIC > AlloC) > EgoIC (AlloIC > AlloC)”. Mean parameter estimates extracted from the activated cluster are shown as a function of the four experimental conditions. Error bars indicate SEs. (C) PPI analysis based on neural activity in the right SPG (MNI: 24, −70, 48) with the contrast “Match vs. Mismatch” as the psychological factor. The right SPG (upper panel) showed enhanced functional connectivity with the left IFC and the left MT (lower panel) in the “Match” conditions than in the “Mismatch” conditions. For a representative participant, mean corrected neural activity in the left IFC (lower left panel) and the left MT (lower right panel) was plotted as a function of the mean corrected neural activity in the right SPG in the “Match” and “Mismatch” conditions, respectively.
