From: MicroRNA-495 downregulates AQP1 and facilitates proliferation and differentiation of osteoblasts in mice with tibial fracture through activation of p38 MAPK signaling pathway

Figure 1

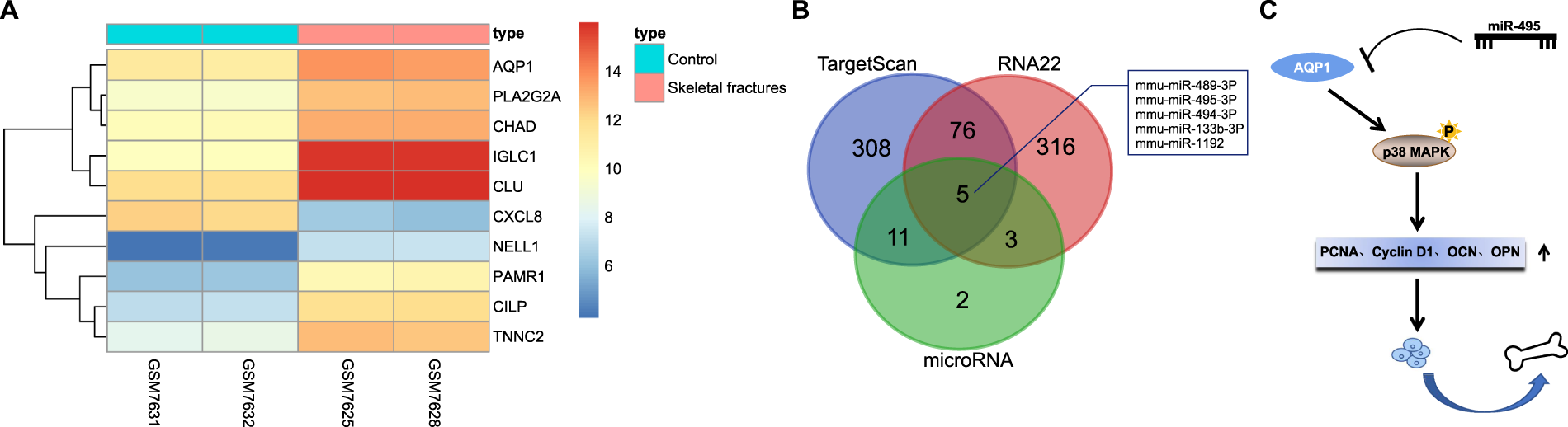

MiR-495 affects fracture healing via regulating AQP1. (A) The heat map of the top 10 differentially expressed genes of GSE494 gene expression dataset; (B) MicroRNA, RNA22 and TargetScan predicted mmu-miR-489-3p, mmu-miR-495-3p, mmu-miR-494-3p, mmu-miR-133b-3p and mmu-miR-1192 may have targeting effects on AQP1; (C) the mechanism image of miR-495 affecting differentiation of osteoblasts via regulation on AQP1. miR-495, microRNA-495; AQP1, aquaporin-1.
