Figure 7

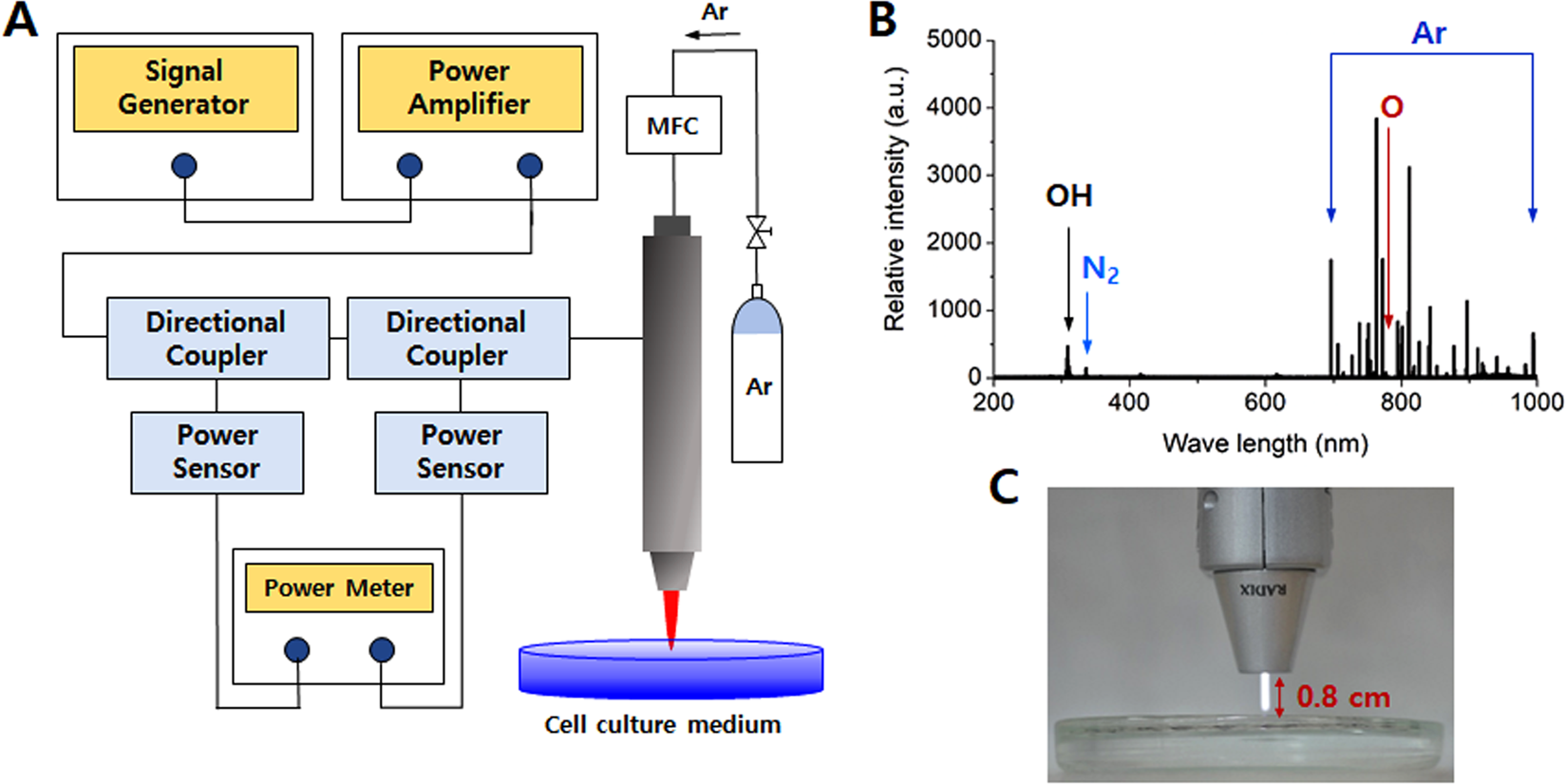

(A) Schematic representation of the NAP plasma generator. (B) Optical emission spectra of the NAP plasma jet in mode 3 during discharge at a wavelength of 200–1000 nm. (C) Experimental setup of the cold plasma jet used to prepare the PAM, which was taken by us.
