Figure 7
From: Total ankle arthroplasty and ankle arthrodesis affect the biomechanics of the inner foot differently

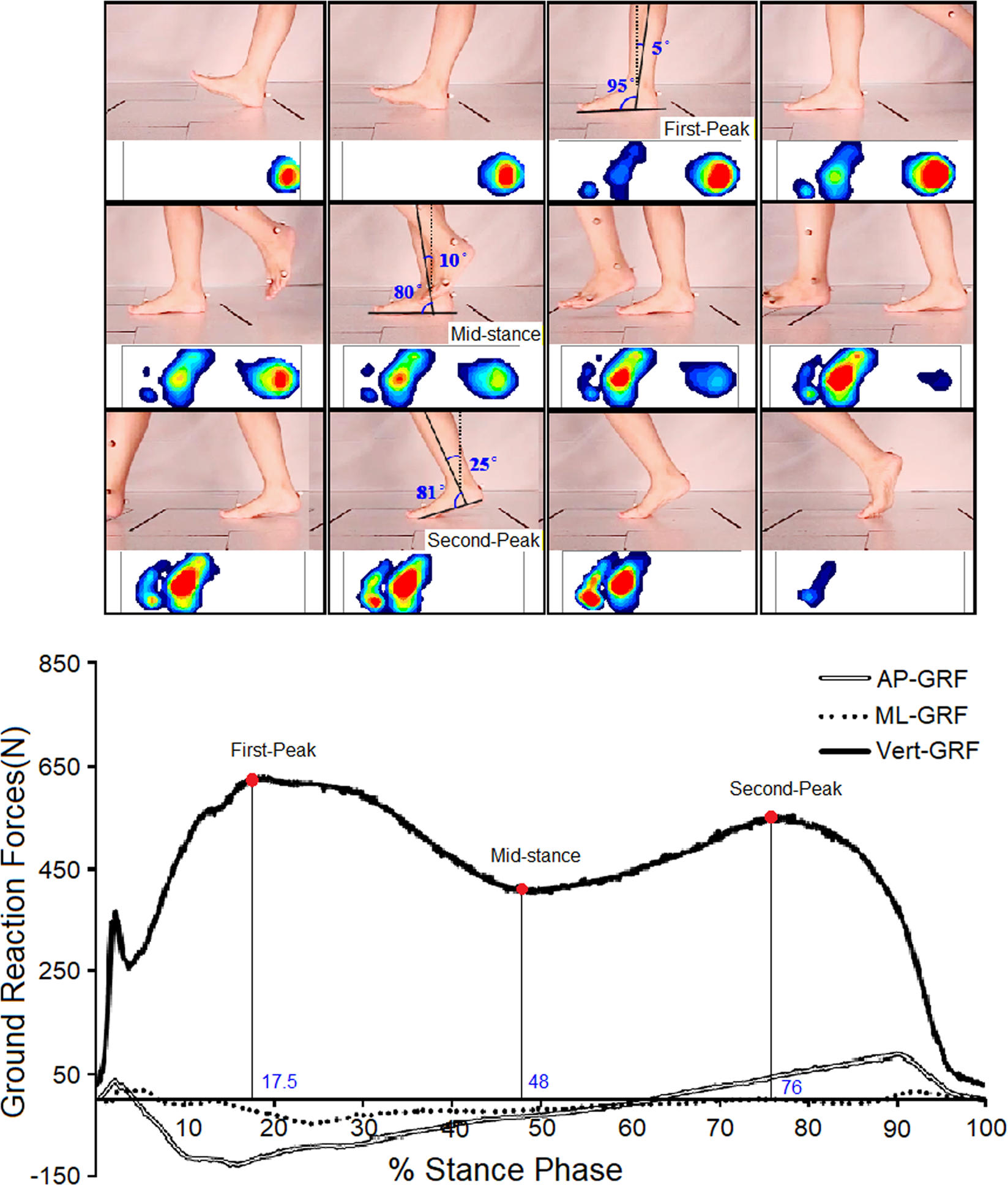

Foot positions, plantar pressure distribution, and curves of ground reaction forces during the stance phase of gait at the three marked instants, with AP-GRF, ML-GRF and Vert-GRF for anteroposterior, mediolateral and vertical ground reaction forces.
