Figure 9
From: Preparation of β-CD-DPPE-Dox Nanomedicine and Its’ Application as the Anticancer and Antitumor Drug

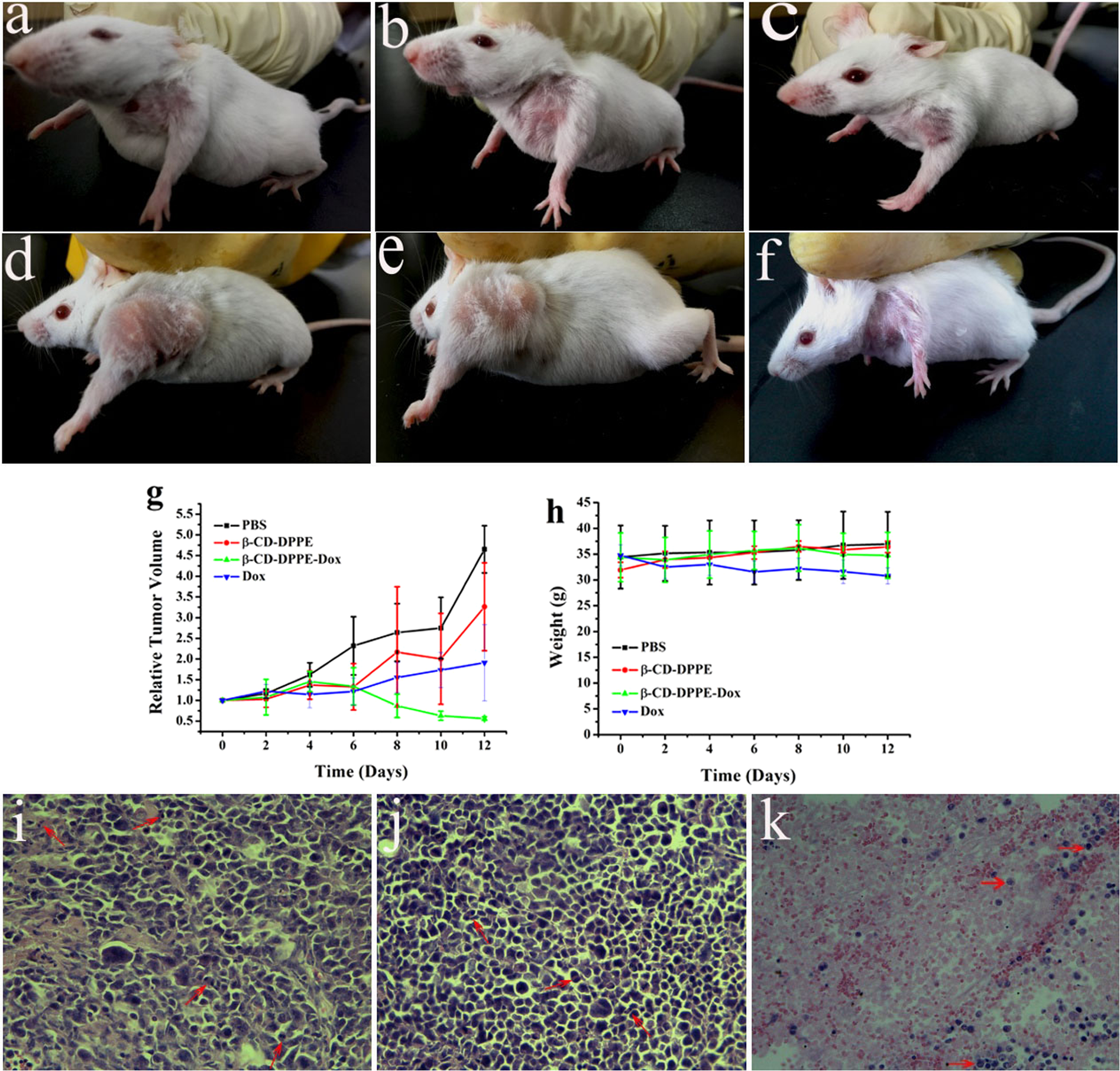

The therapeutic effect of β-CD-DPPE-Dox micelles nanomedicine in vivo. (a) Tumor before injected the PBS. (b) Tumor before injected the β-CD-DPPE micelles. (c) Tumor before injected the β-CD-DPPE-Dox micelles nanomedicine. (d) Tumor injected the PBS after 12 days. (e) Tumor injected the β-CD-DPPE micelles after 12 days; (f) Tumor injected the β-CD-DPPE-Dox micelles after 12 days. (g) The tumor volume change with the time increase. (h) The weight change with the time increase. (i) Tissue section of tumor was injected PBS after 12 days. (j) Tissue section of tumor was injected β-CD-DPPE micelles after 12 days. (k) Tissue section of tumor was injected β-CD-DPPE-Dox micelles nanomedicine after 12 days.
