Figure 6

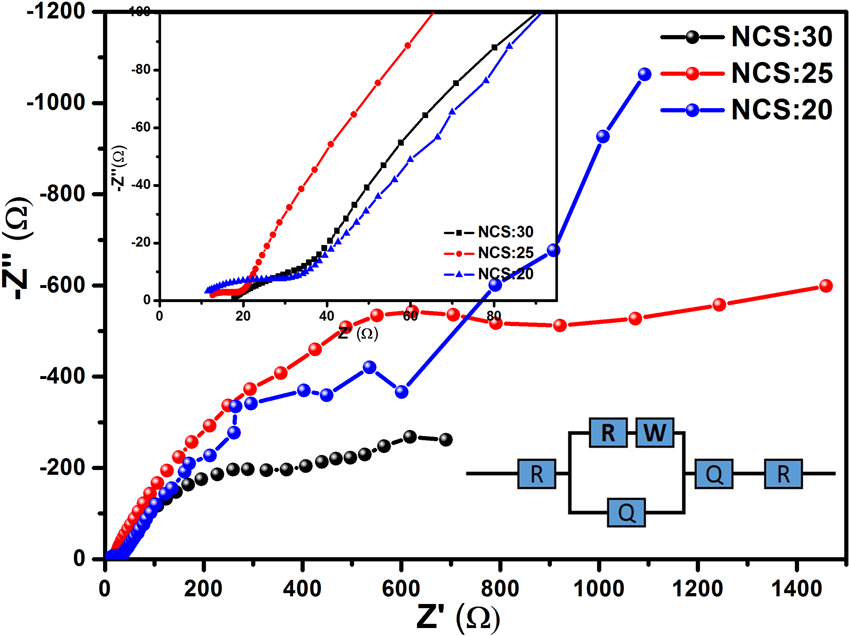

Nyquist plots for the NCS:30, NCS:25, and NCS:20 electrodes at 5 M KOH electrolyte. (Inset: Proposed equivalent circuit for EIS fitting).
Figure 6 | Scientific Reports
Nyquist plots for the NCS:30, NCS:25, and NCS:20 electrodes at 5 M KOH electrolyte. (Inset: Proposed equivalent circuit for EIS fitting).
