From: Transcriptomic analysis reveals new hippocampal gene networks induced by prolactin

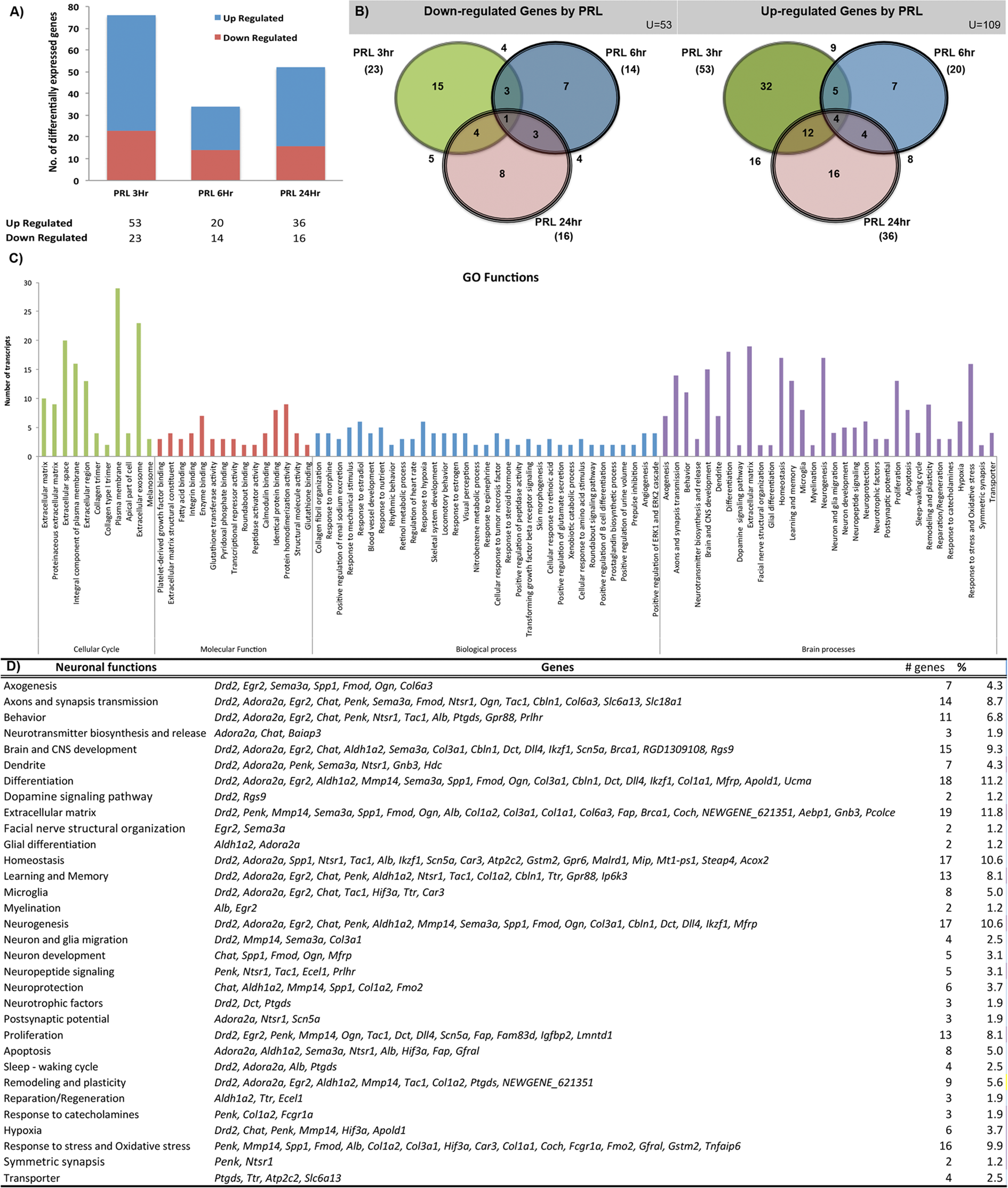

Prl induces changes in the expression of several genes involved in brain processes. (A) Summary of all the differentially expressed genes. (B) Venn diagram of the differentially expressed transcripts during time courses of Prl treatment. (C) Diverse categories of cell functions affected by Prl-regulated genes. All genes related to brain processes are shown in purple. (D) Numbers and percentages of Prl-regulated genes involved in brain processes.
