Figure 14
From: Convergent and Divergent Paired Electrodeposition of Metal-Organic Framework Thin Films

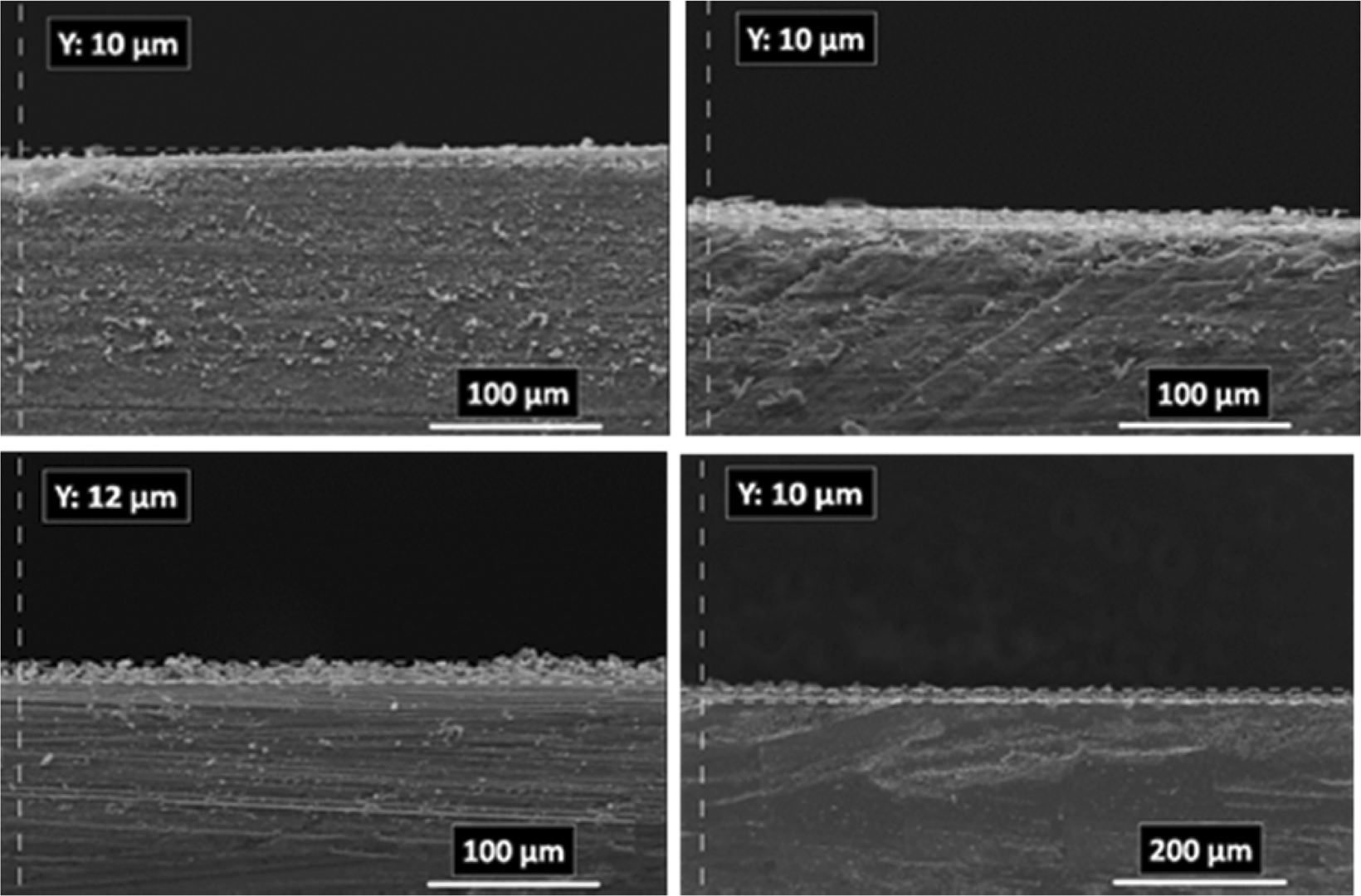

Cross section view of FE-SEM images of Znc-MOFTF (up-left) and Zna-MOFTF (up-right) modified electrodes by the CPED and Cua-MOFTF (down-left) and Znc-MOFTF (down-right) modified electrodes by the DPED at the Iapp = 1 mA cm−2 and t = 3600 s.
