Figure 8
From: Chemically Functionalised Graphene FET Biosensor for the Label-free Sensing of Exosomes

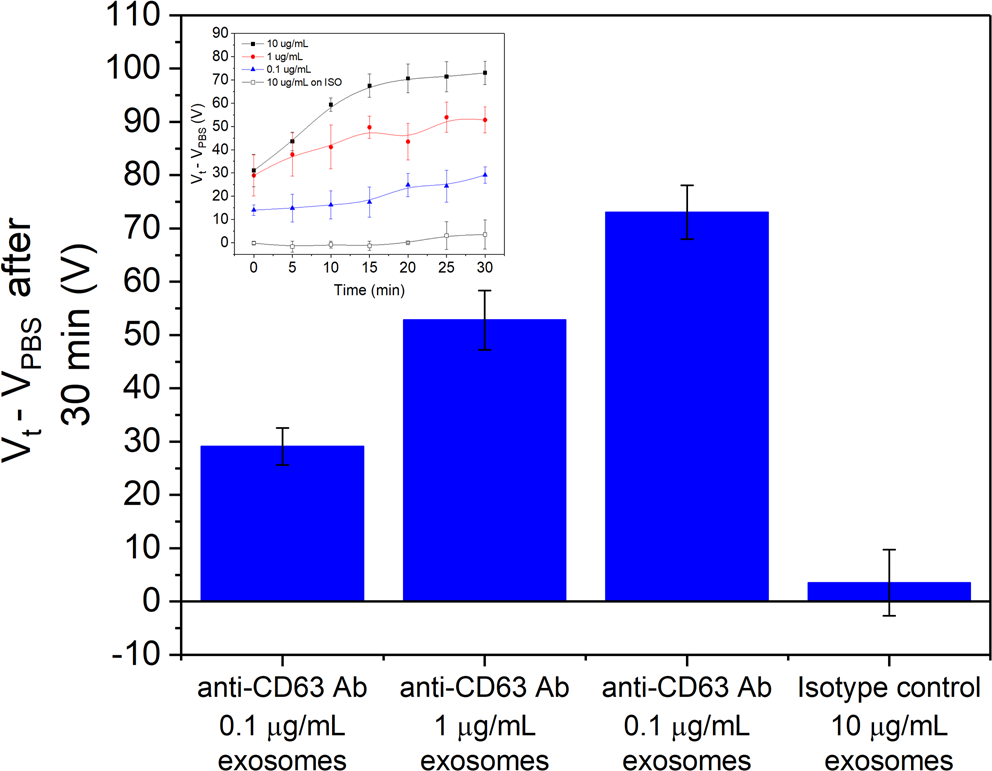

Shift in the additional minimum relative to the PBS reference after 30 minutes for anti-CD63 Ab-conjugated samples with exosomes of various concentrations alongside the shifts for the isotype-control conjugated samples with the maximum exosome concentration used (10 μg/mL exosomes). All 4 cases were performed over 3 samples with error bars denoting ± one standard deviation. Inset: Vt − VPBS plot over time reproduced from Fig. 5(c) with additional curve for the isotype control with 10 μg/mL exosomes.
