Figure 7
From: Transmission dynamics of HIV-1 subtype B strains in Indonesia

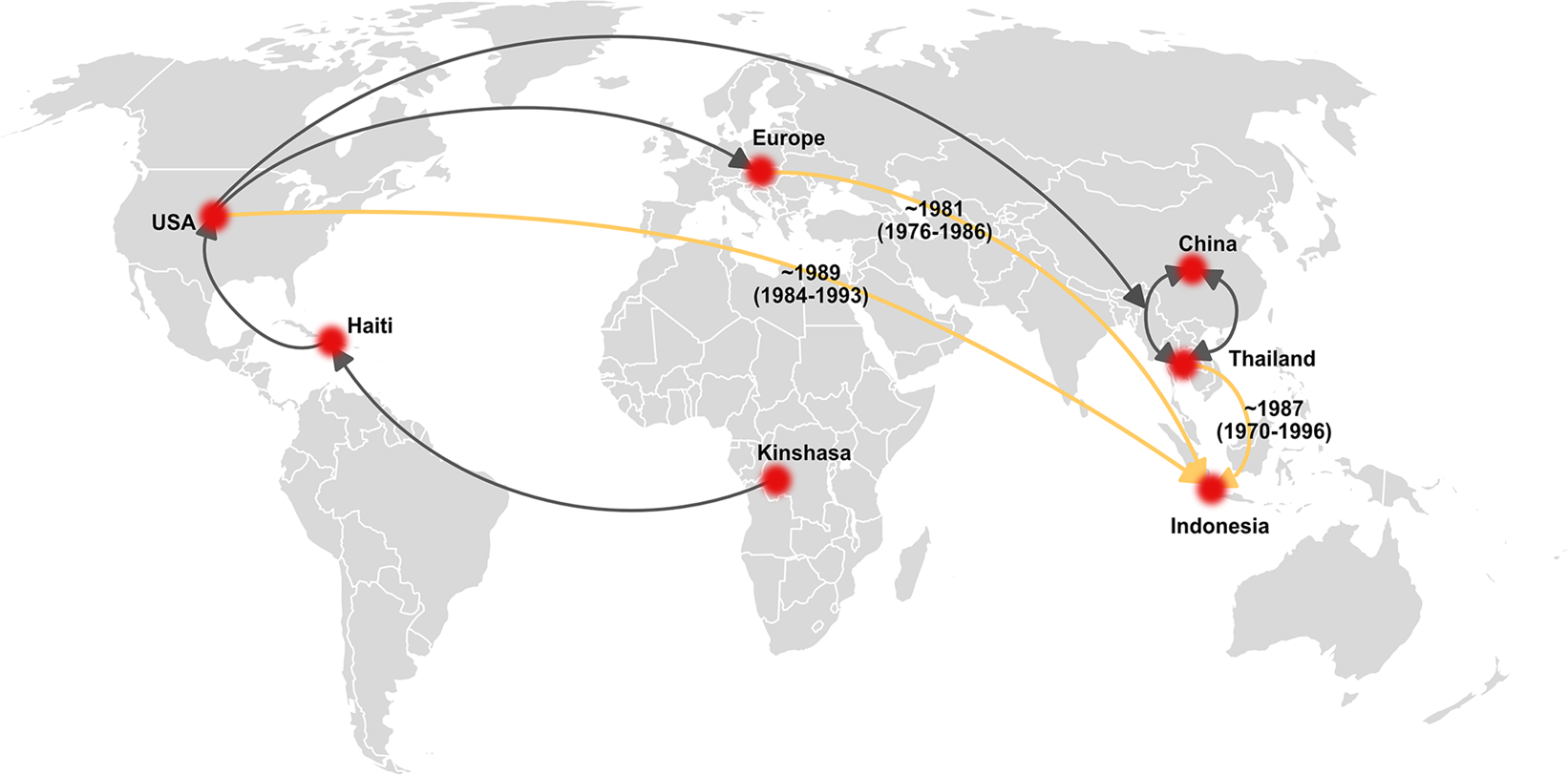

Estimated spatial dynamics of HIV-1B in Indonesia. Gray and orange lines represent the estimated dissemination routes of HIV-1B in other studies14,27 and in the present study, respectively. The epidemic started in the city of Kinshasa, the Democratic Republic of the Congo. HIV-1B then spread through Haiti and America. There are 3 different HIV-1B clades in Indonesia (the ID, CN, and US clades). The estimated tMRCAs (95% HPD) analyzed in the gag region for the ID and US clades and in the pol region for the CN clade are shown.
