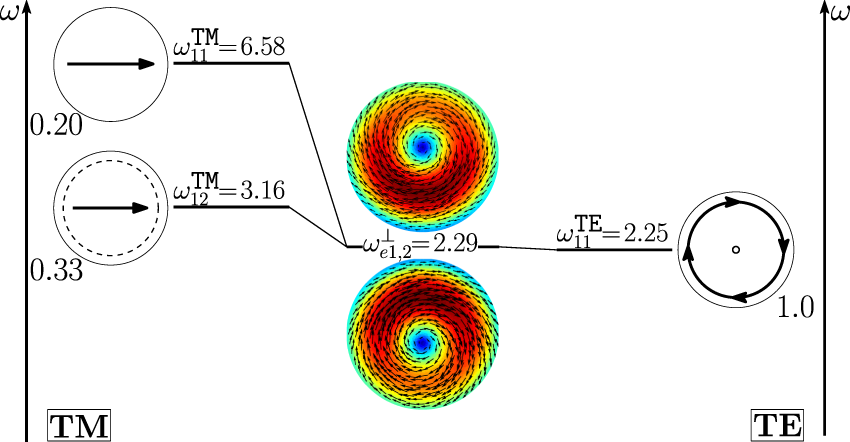

Figure 12
From: Full-wave electromagnetic modes and hybridization in nanoparticle dimers
Frequency levels describing the hybridization of the TE and TM modes of a 100 nm isolated-sphere into the dimer-mode \({{\bf{d}}}_{e1,2}^{\perp }\). The vertical axis represents the frequency (expressed in Prad/s). Next to each isolated-sphere mode we report its hybridization weight \({H}_{e12\,nl}^{\perp \,|\mathrm{TM}}\) (\({H}_{o12\,nl}^{\perp \,|\text{TE}}\)).
