Figure 18
From: Full-wave electromagnetic modes and hybridization in nanoparticle dimers

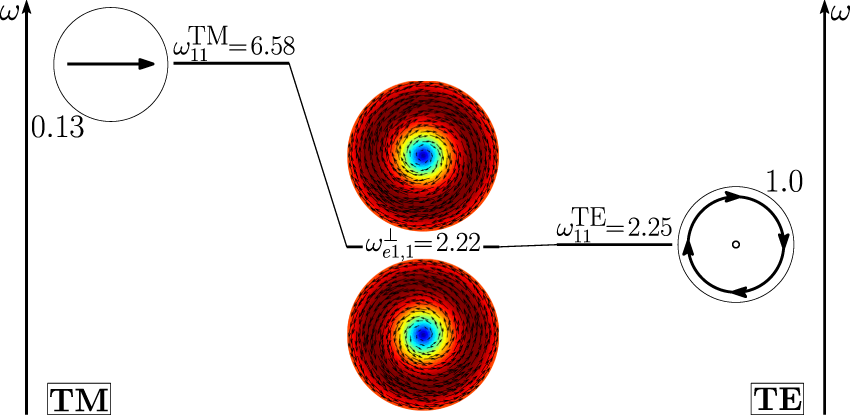

Frequency levels describing the hybridization of the TE and TM modes of a 100 nm isolated-sphere into the dimer-mode \({{\bf{d}}}_{e1,1}^{\perp }\). The vertical axis represents the frequency (expressed in Prad/s). Next to each isolated-sphere mode we show its hybridization weight \({H}_{e11nl}^{\perp |{\rm{TM}}}\) (\({H}_{o11nl}^{\perp |{\rm{TE}}}\)).
