Figure 8
From: Full-wave electromagnetic modes and hybridization in nanoparticle dimers

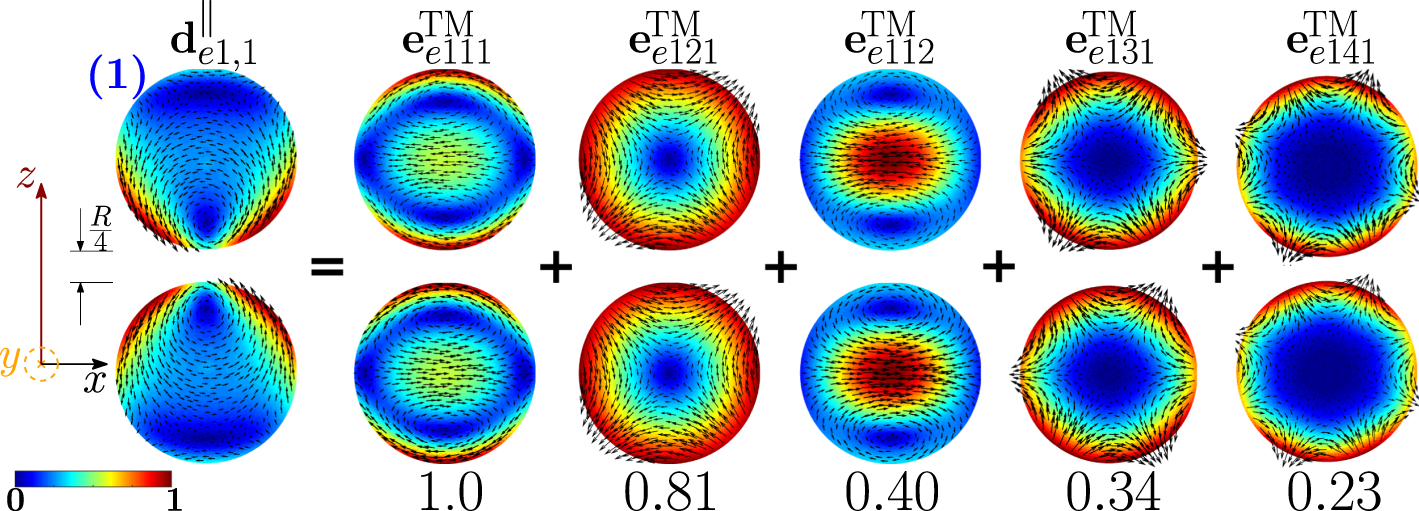

Decomposition of the dimer-mode \({{\bf{d}}}_{e1,1}^{\parallel }\) at \(x=0.892\) in terms of hybridizing isolated-sphere modes (real part of the projection on the y = 0 plane). Each isolated-sphere modes is multiplied by the expansion coefficients of Eq. 8. Below each isolated-sphere mode we also show its hybridization weight \({H}_{e11\,nl}^{\parallel \,|{\rm{TM}}}\).
