Figure 1
From: Thermogenic crosstalk occurs between adipocytes from different species

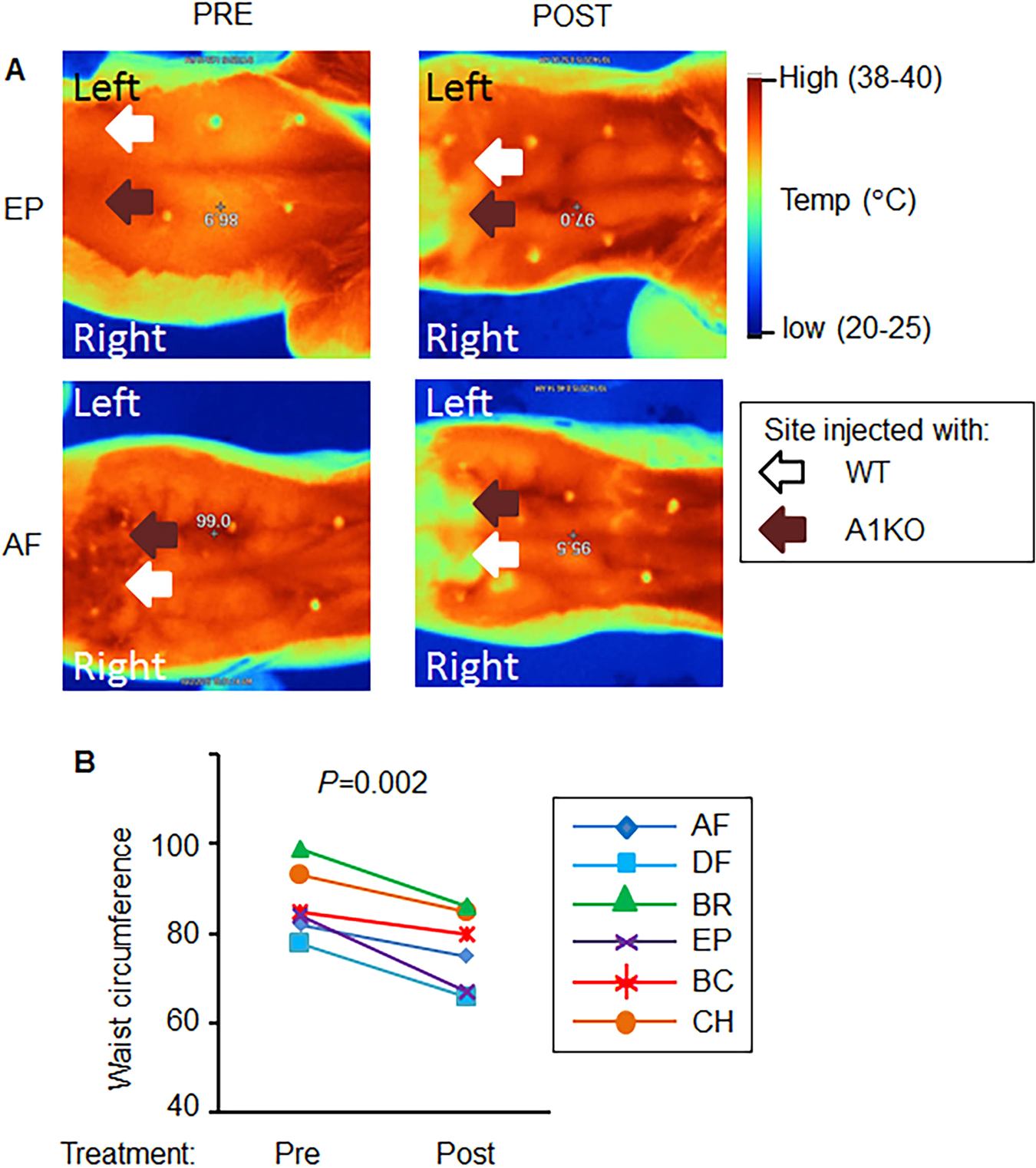

Microencapsulated murine subcutaneous WT and A1KO adipocytes reduced waist circumference. (A) The infrared images of dogs (EP, and AF are initials of individual dogs) illustrate the side of injection of encapsulated WT (white arrow) and aldehyde dehydrogenase a1 knock out (A1KO, brown arrow) adipocytes before (Pre) and 28 days after injection (Post). (B) Waist circumference (difference between waiste and nipples) was measured in dogs before and 28 days after treatment with encapsulated WT (white arrow) and A1KO as described in (Fig. S1). Paired Student t-test.
