Figure 5

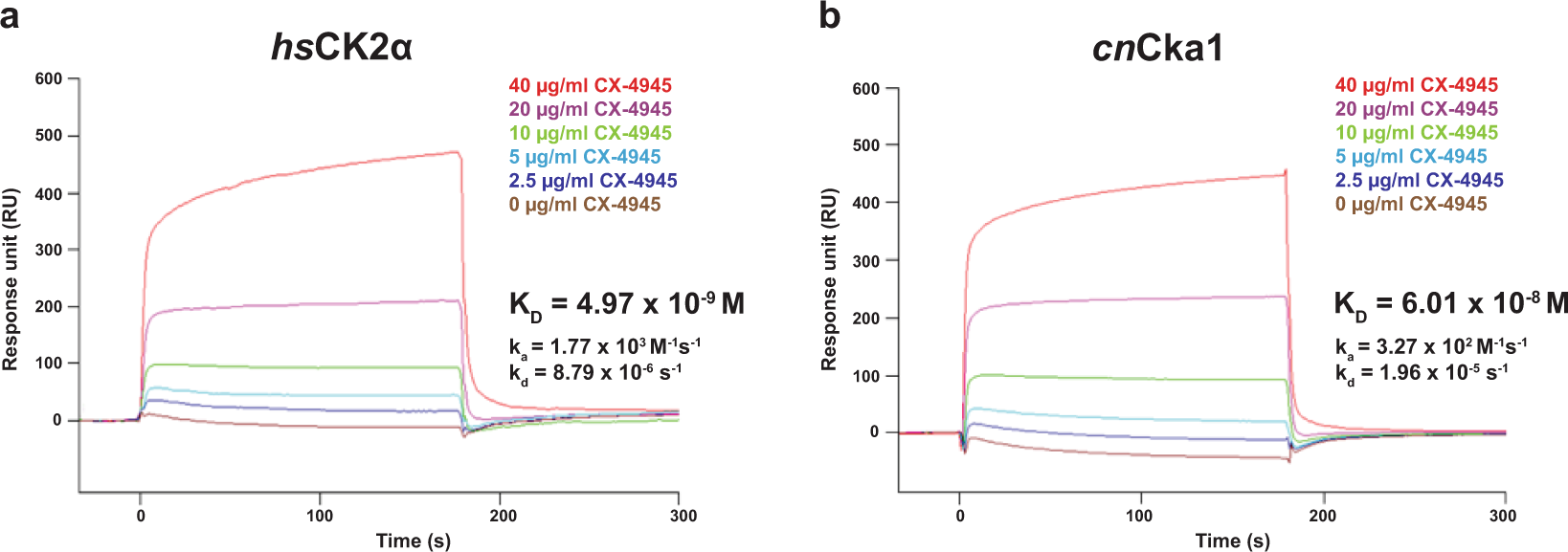

Surface plasmon resonance sensorgrams showing the interactions of hsCK2α and cnCka1 with the inhibitor CX-4945. (a) Interaction between hsCK2α and CX-4945. (b) Interaction between cnCka1 and CX-4945.
Figure 5 | Scientific Reports
Surface plasmon resonance sensorgrams showing the interactions of hsCK2α and cnCka1 with the inhibitor CX-4945. (a) Interaction between hsCK2α and CX-4945. (b) Interaction between cnCka1 and CX-4945.
