From: Upper limb joint kinematics using wearable magnetic and inertial measurement units: an anatomical calibration procedure based on bony landmark identification

Figure 2

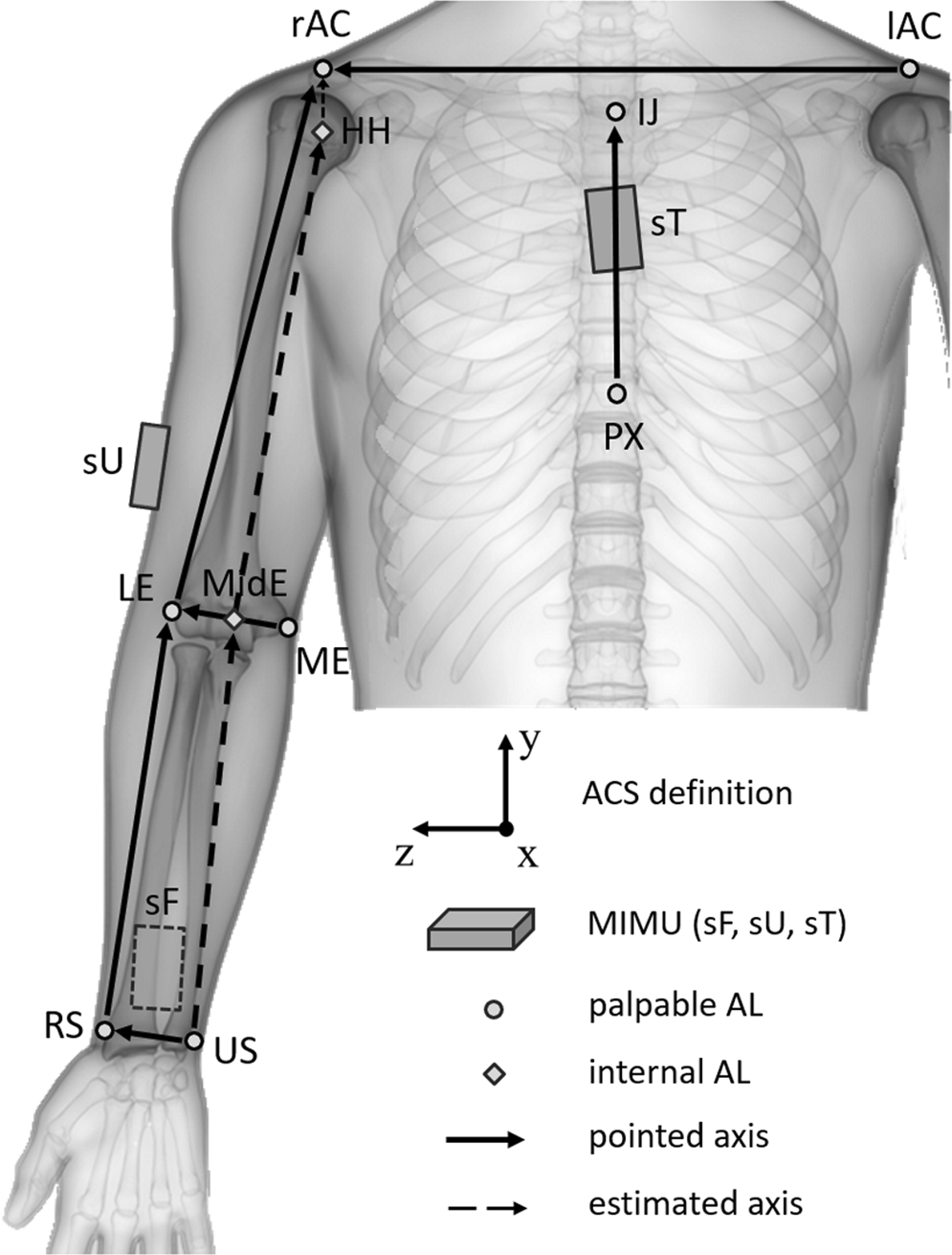

MIMU placement for the proposed upper body kinematic model and palpable anatomical landmarks (ALs) used for the anatomical calibration procedure. Note that the orientation of sensors on the thorax (sT), upper arm (sU) and forearm (sF) is arbitrary. Solid and dashed arrows represent the pointed and estimated anatomical axes, respectively. The former are calibrated, whereas the latter are determined using vector summation in Eq. 2 and Eq. 4 (MidE-US and HH-MidE, forearm and upper arm longitudinal axes, respectively) or estimated via anthropometrical modelling in Eq. 5 and Eq. 6 (rAC-HH). The anatomical coordinate system (ACS) definition for thorax, upper arm and forearm definition is also shown.
