Figure 3

From: Strain diversity of Treponema pallidum subsp. pertenue suggests rare interspecies transmission in African nonhuman primates

Figure 3

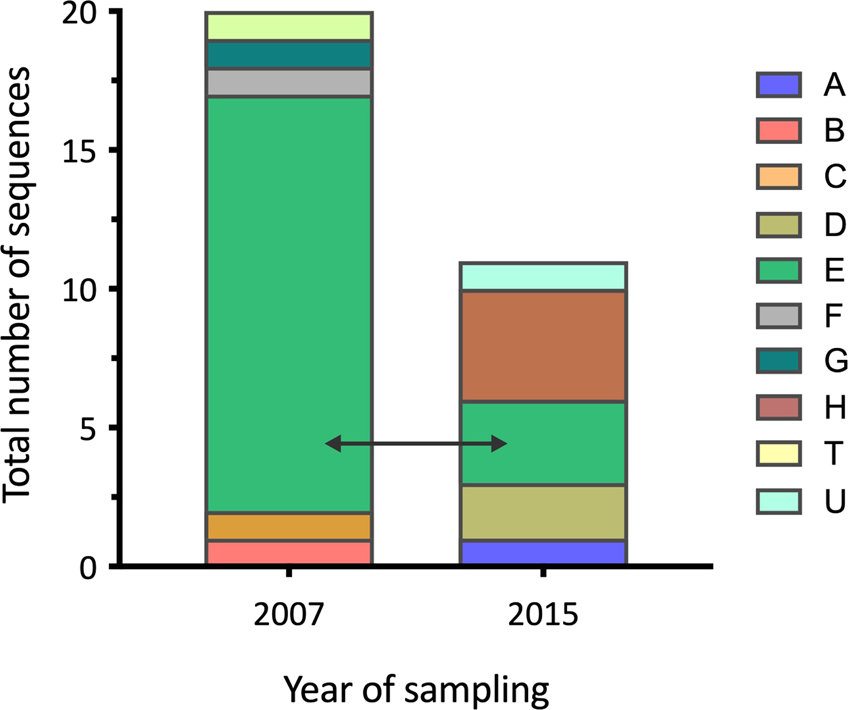

Temporal strain composition for samples collected from olive baboons at Lake Manyara National Park. The different colors indicate different genotypes. Sampling of olive baboons at LMNP was conducted in 2007 and 2015. The strain “E” (light green; e.g., 4LMF8160815) was the dominating strain in 2007 and was still present in baboons sampled eight years later (2015).
