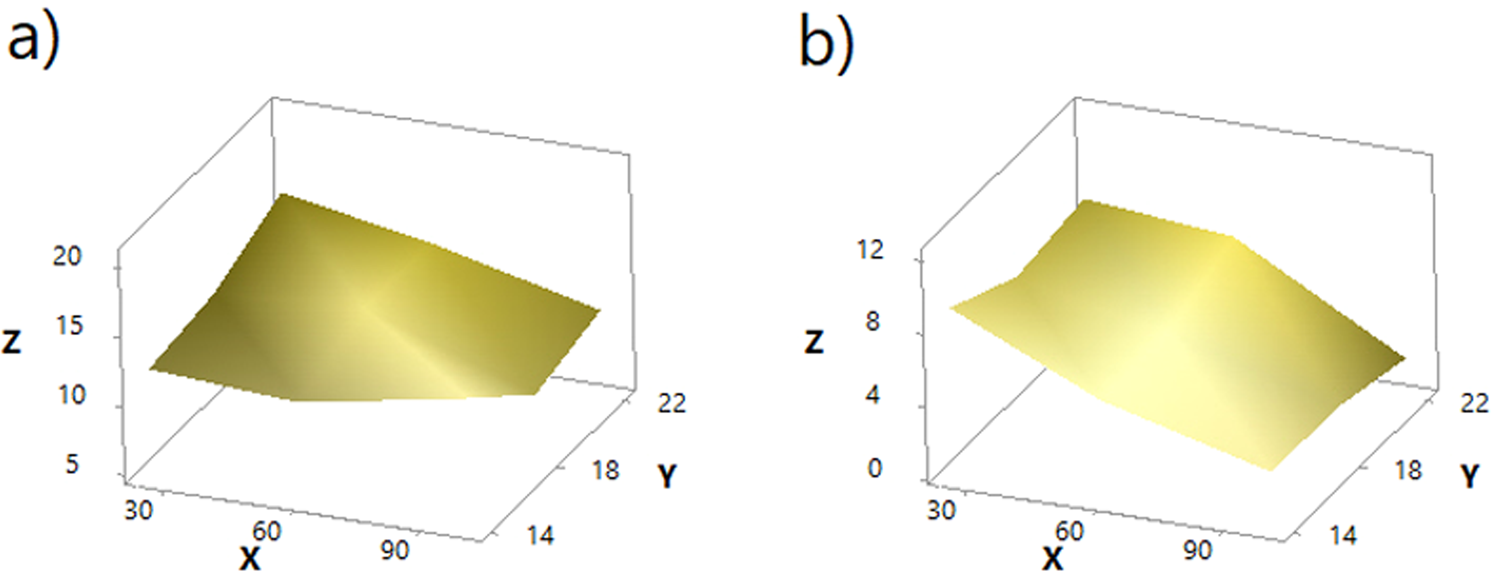

Figure 16

Theoretical models of stress of conductive PLA track (MPa) of 3D-PPOT conductive materials in Z axis, in function of weft density (picks/inch) in Y axis and platform temperature (°C) in X axis in cross direction (a) using the statistical model of Eq. (5) and machine direction (b) using the statistical model of Eq. (6).
