Figure 5

From: Stress, strain and deformation of poly-lactic acid filament deposited onto polyethylene terephthalate woven fabric through 3D printing process

Figure 5

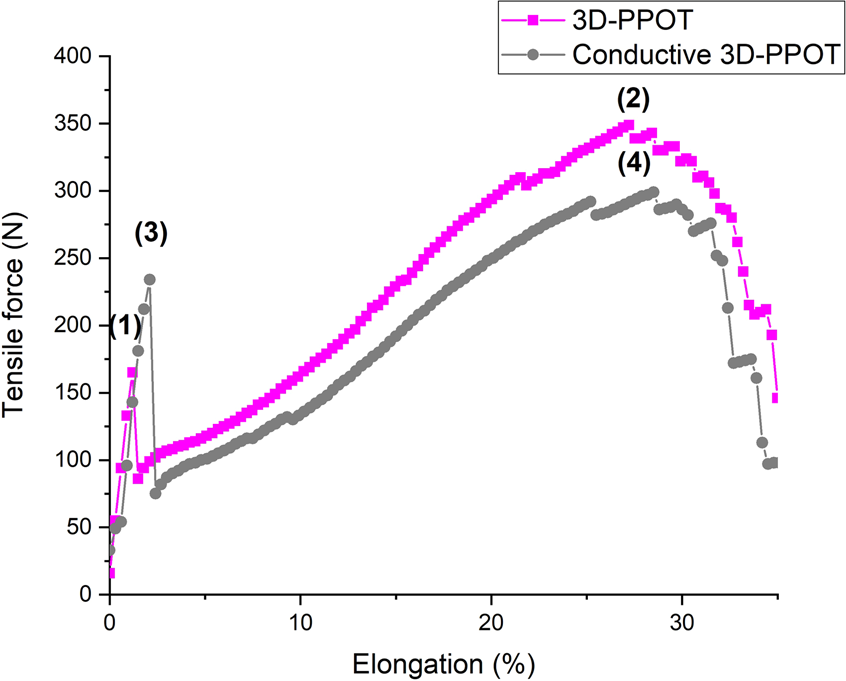

Tensile force–Elongation curves of 3D-PPOT materials using virgin PLA filament and PLA/2.5%CB (conductive) filament printed on 14 picks/inch PET woven fabrics in cross direction. (1) and (2) represent the maximum strength of the PLA layer and the PET fabric of the 3D-PPOT using virgin PLA filament printed in cross direction respectively. (3) and (4) represent the maximum strength of the conductive PLA layer and the PET fabric of the 3D-PPOT using PLA/2.5wt.% CB filament printed in cross direction respectively.
