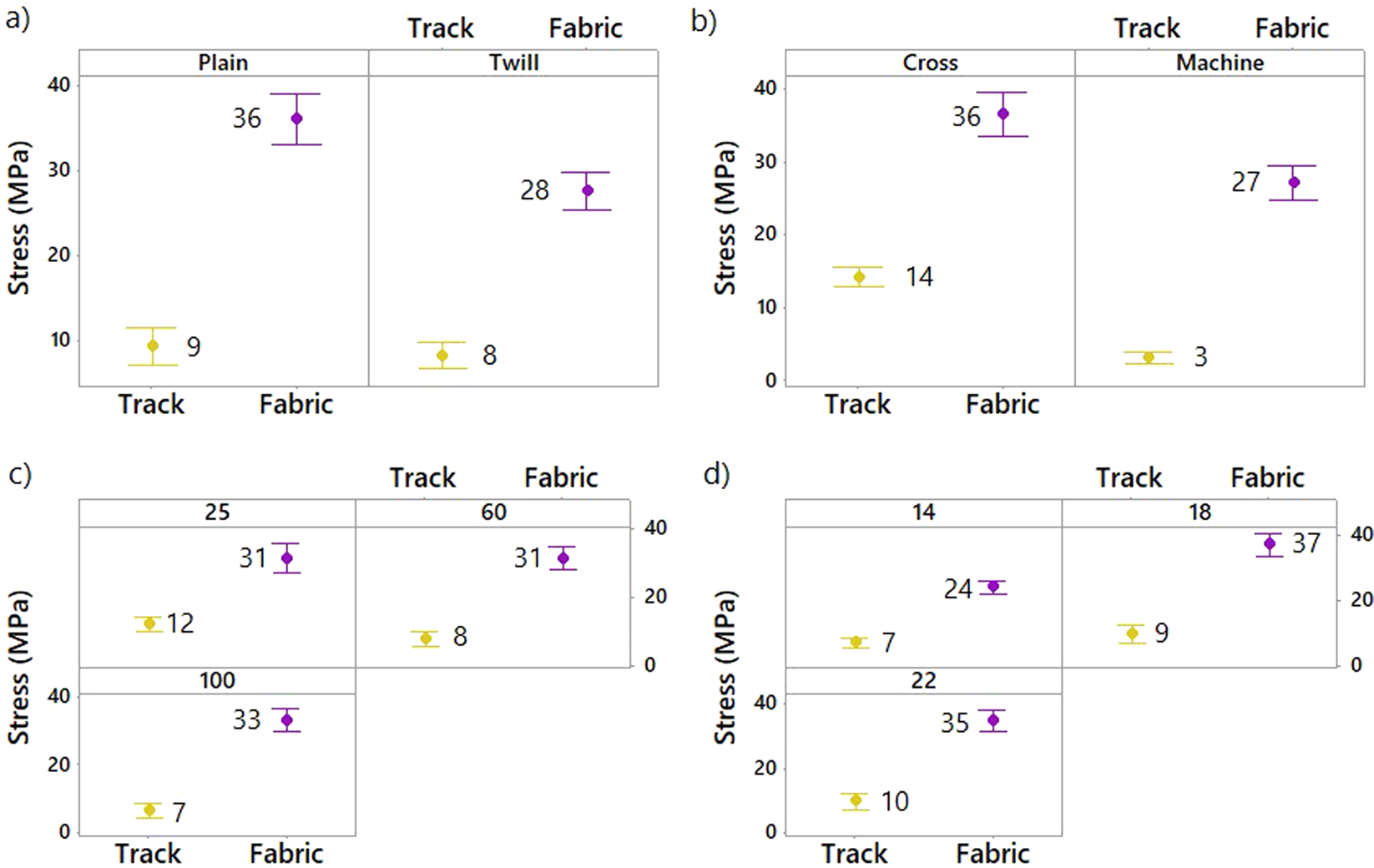

Figure 9

Effect of textile pattern (a), textile orientation (b), platform temperature (c) and textile weft density (d) on stress (MPa) of 3D-PPOT materials made of non-conductive PLA track and PET fabric. Both the stress of the PLA track and PET fabric have to be considered.
