Figure 7
From: A two-layered brain network model and its chimera state

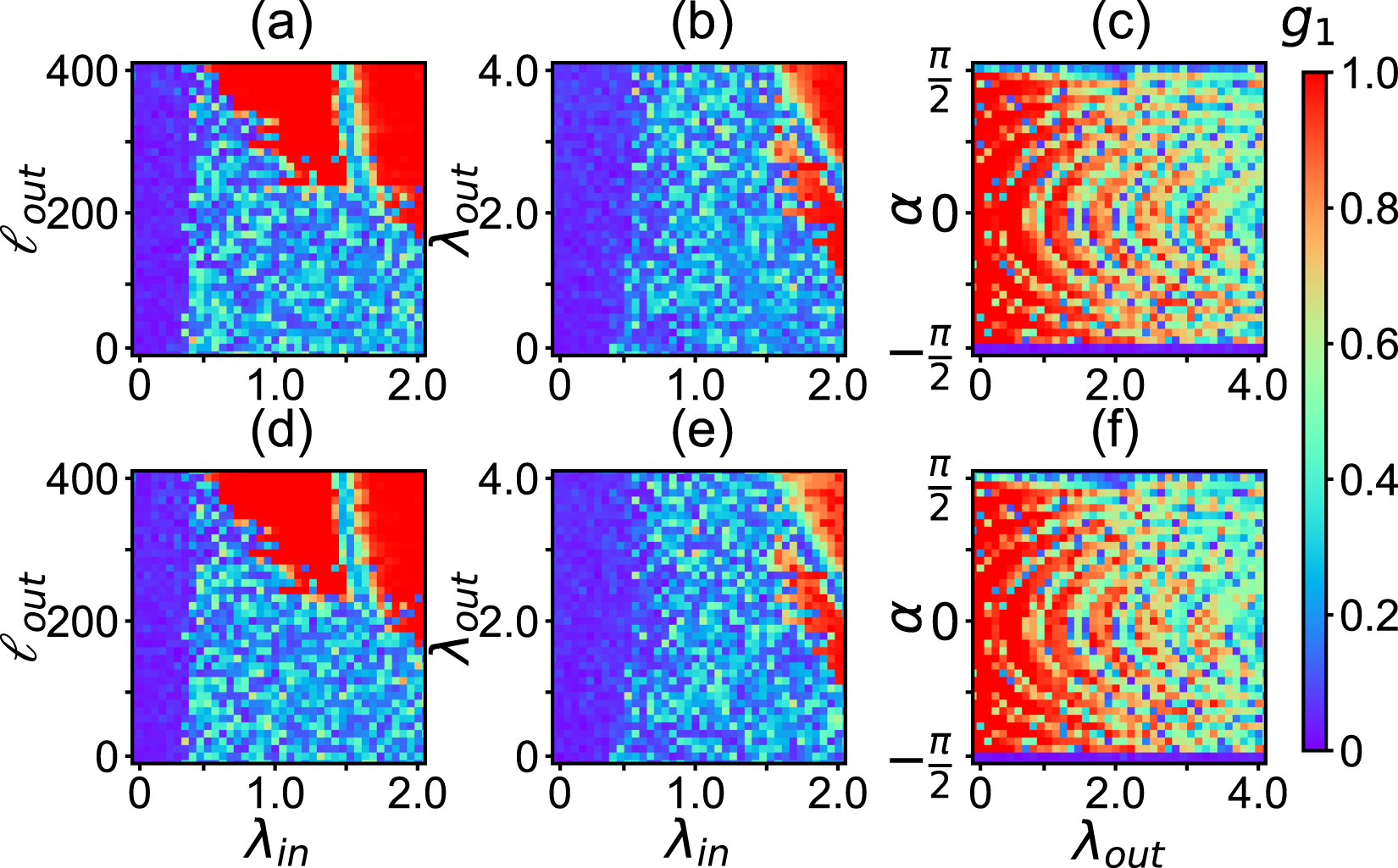

Phase diagram of g1 with N = 200 and 〈k〉 = 10, where the up panels are for the network-A and down panels for the network-B. (a,d) represent the values of g1 in the parameter plane of λin and \({\ell }_{out}\) for fixed λout = 0.5 and α = π/2 − 0.1, (b,e) the case in the parameter plane of λin and λout for fixed \({\ell }_{out}\mathrm{=100}\) and α = π/2 − 0.1, and (c,f) the case in the parameter plane of λout and α for fixed \({\ell }_{out}\mathrm{=100}\) and λin = 0.6.
