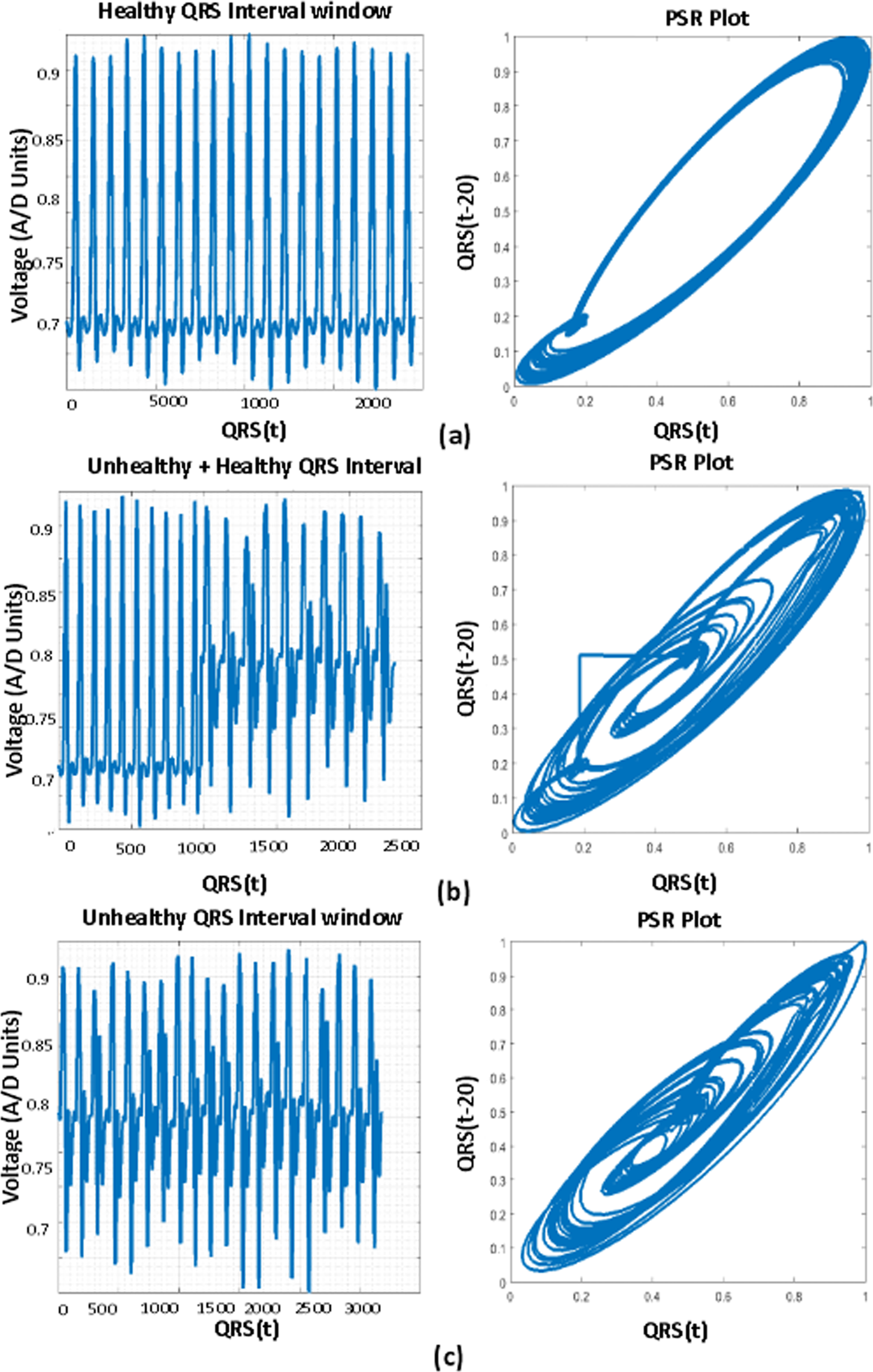

Figure 18
From: Phase Space Reconstruction Based CVD Classifier Using Localized Features
PSR plots of the window covering QRS complexes. (a) Healthy QRS complexes and its PSR plot. (b) Combination of healthy and unhealthy QRS complexes. (c) Unhealthy QRS complexes and its PSR plot.
