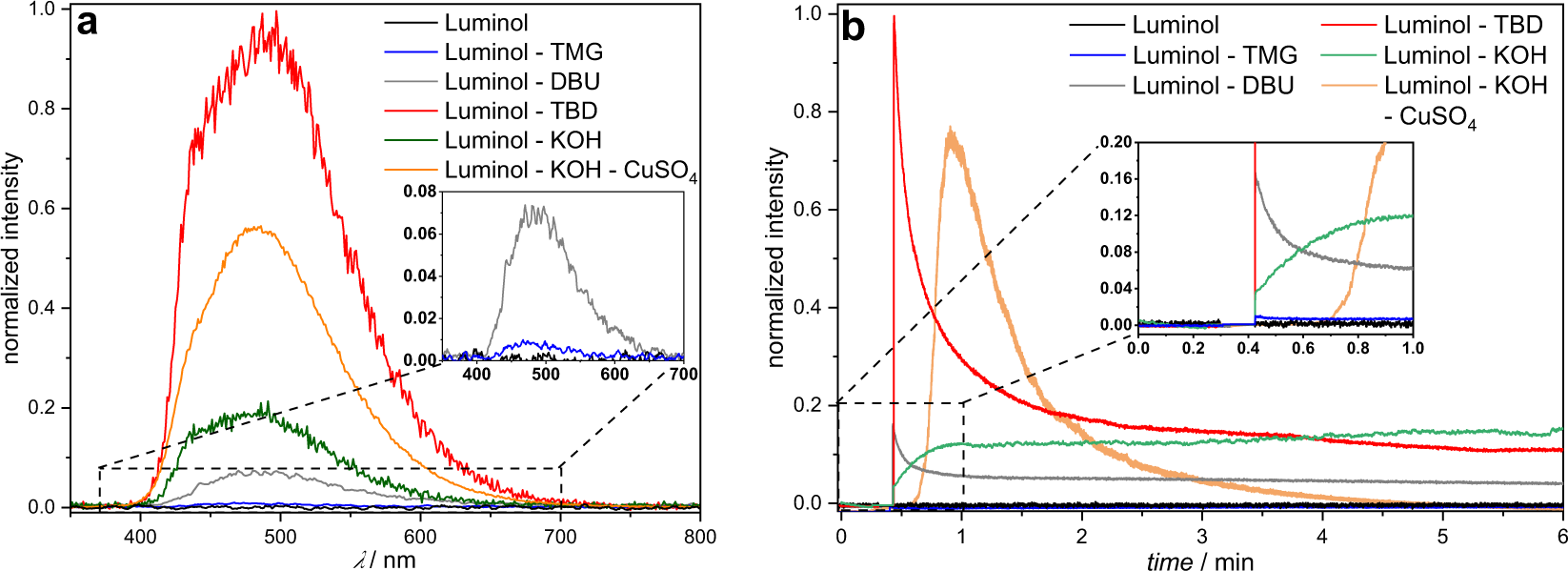

Figure 3
From: A Guanidine-Based Superbase as Efficient Chemiluminescence Booster
(a) CL emission of luminol-base-systems in DMSO (c(luminol) = 7.5 × 10−2 mol L−1, c(base) = 37.5 × 10−2 mol L−1, c(CuSO4) = 4.5 × 10−2 mol L−1) at ambient temperature, triggered by 0.1 mL H2O2 (1 mol L−1). (b) Time dependent CL emission of luminol-base-systems in DMSO (c(luminol) = 7.5 × 10−2 mol L−1, c(base) = 37.5 × 10−2 mol L−1, c(CuSO4) = 4.5 × 10−2 mol L−1, emission wavelength = 480 nm) at ambient temperature, triggered by 0.1 mL H2O2 (1 mol L−1).
