Figure 8

From: The vernalisation regulator FLOWERING LOCUS C is differentially expressed in biennial and annual Brassica napus

Figure 8

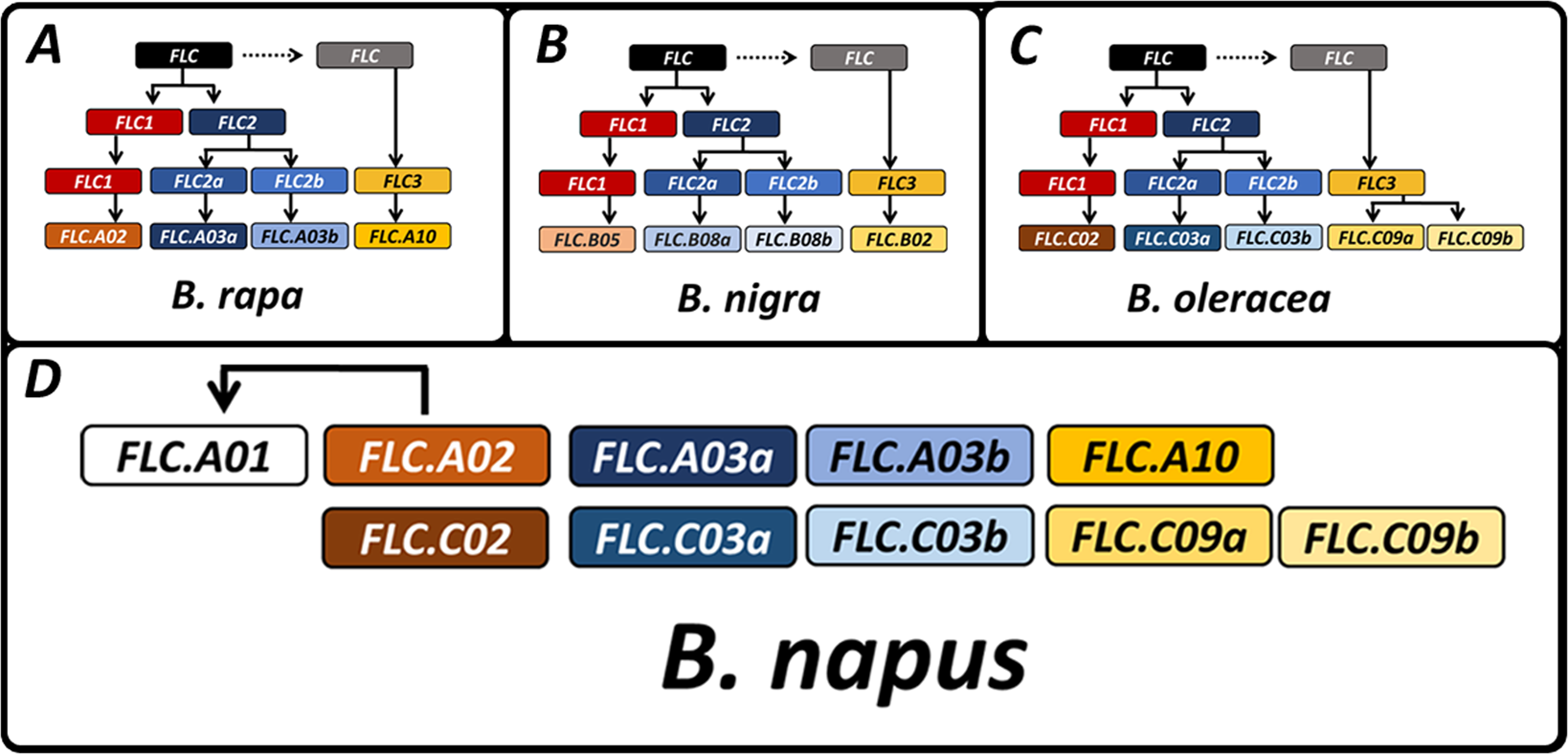

Proposed evolutionary path for Bna.FLC. The model was build based on synteny analysis and phylogenetic analysis. Pseudogenes were identified using protein sequence prediction and gene expression analysis. Gene copies are represented as colored rectangles. White color indicates a putative pseudogene. Arrows indicate ancestry. (A–C) Proposed evolutionary paths for the diploid Brassica species B. rapa, B. nigra and B. oleracea, respectively. (D) Copy configuration for the allotetraploid B. napus.
