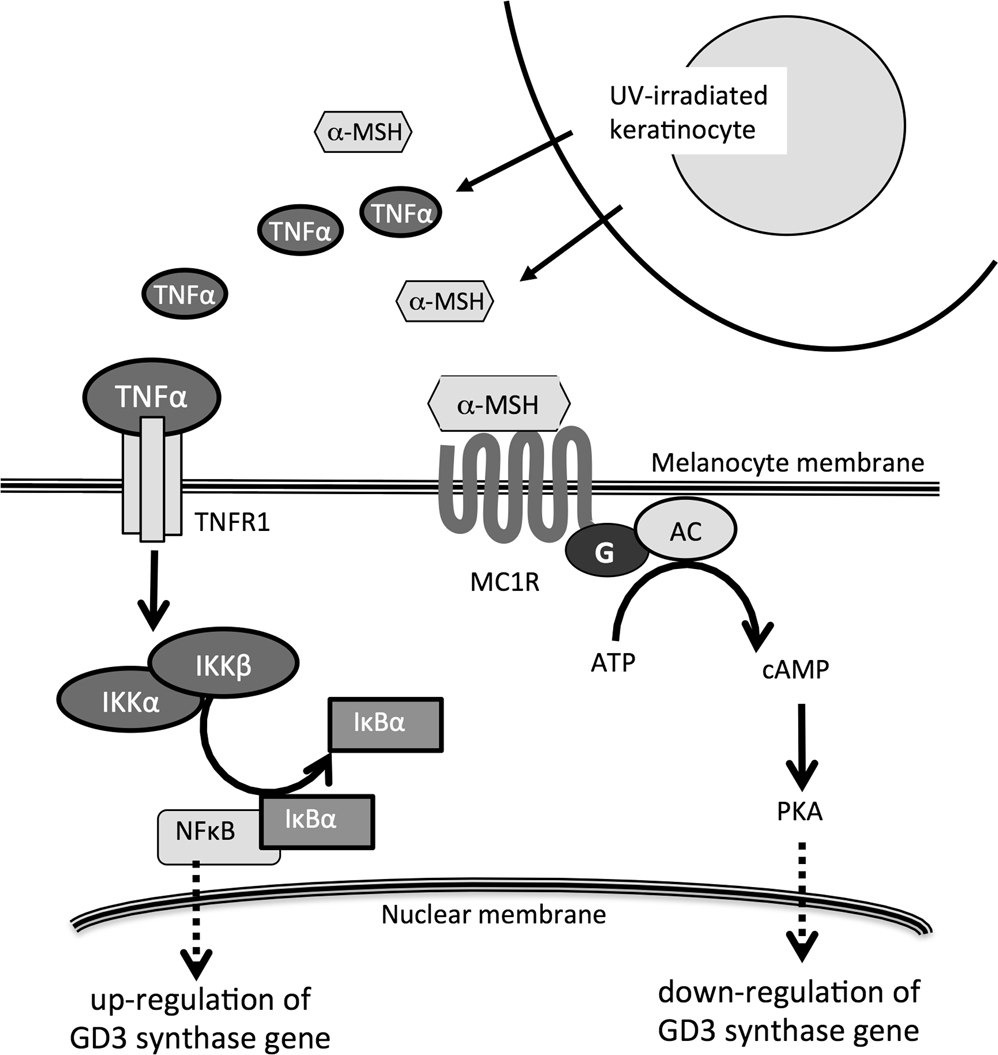

Figure 8

TNFα and cAMP-PKA signal pathways exert opposite effects to regulate GD3 synthase gene expression in human melanocytes. The TNFα signal pathway upregulated expression of the GD3 synthase gene, while cAMP-PKA signaling suppressed its expression.
