Figure 7
From: Modeling Living Cells Within Microfluidic Systems Using Cellular Automata Models

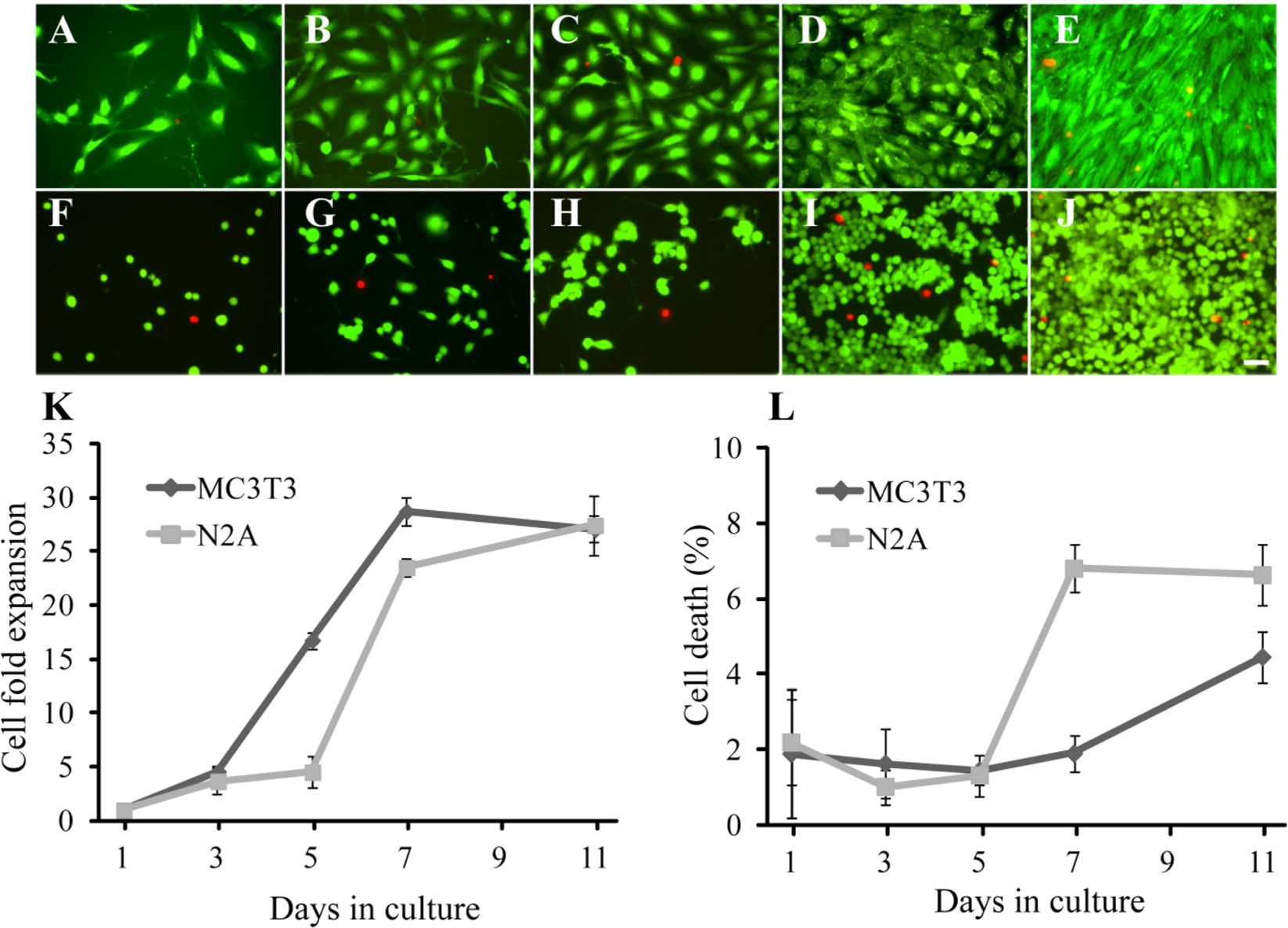

Representative microphotographs showing the evolution of MC3T3 (A–E) and N2A (F–J) cells after 1- (A,F), 3- (B,G), 5- (C,H), 7- (D,I) and 11-days (E,L) in culture. Images are shown as an example from the culture tests used to evaluate cell proliferation and cell viability dynamics. Live cells were stained with calcein (green) and dead cells with propidium iodide (red). Scale bar: 50 μm. Summary graphs show the cell growth (K) and cell viability (L) dynamics for the MC3T3 and N2A cells studied.
