From: Retrieving magma composition from TIR spectra: implications for terrestrial planets investigations

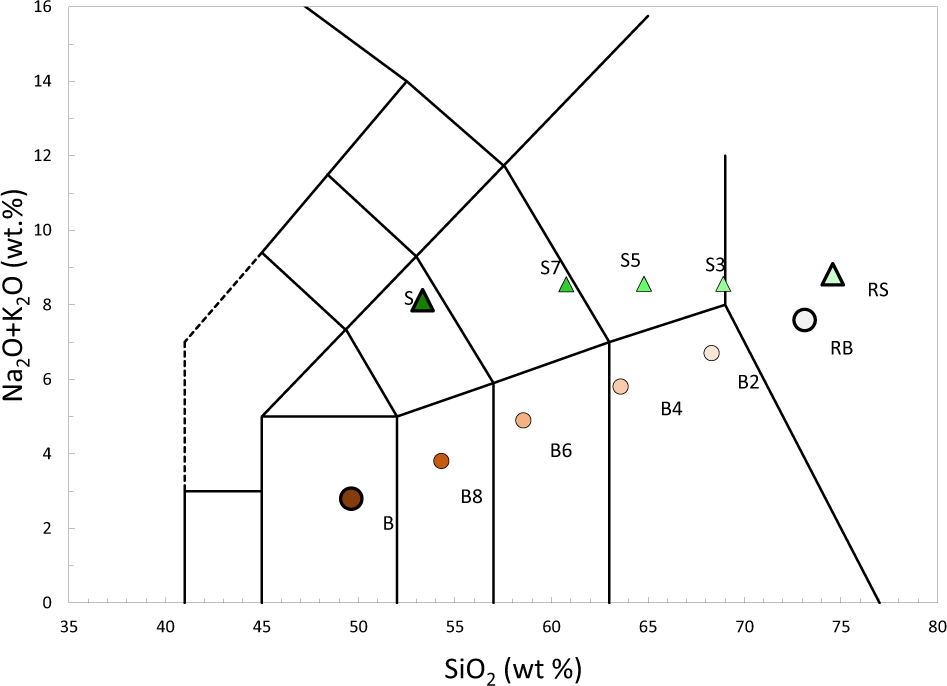

Total alkali-silica diagram (TAS)61 for end-members and intermediate compositions used in this study. Compositions are normalized on anhydrous basis. S and RS refer to the Vulcano Island shoshonite and rhyolite end-members, while B and RB refer to the Snake River Plain basalt and rhyolite end-members. Details are reported into the main text.
