Figure 2

From: Elevated FGF23 and disordered renal mineral handling with reduced bone mineralization in chronically erythropoietin over-expressing transgenic mice

Figure 2

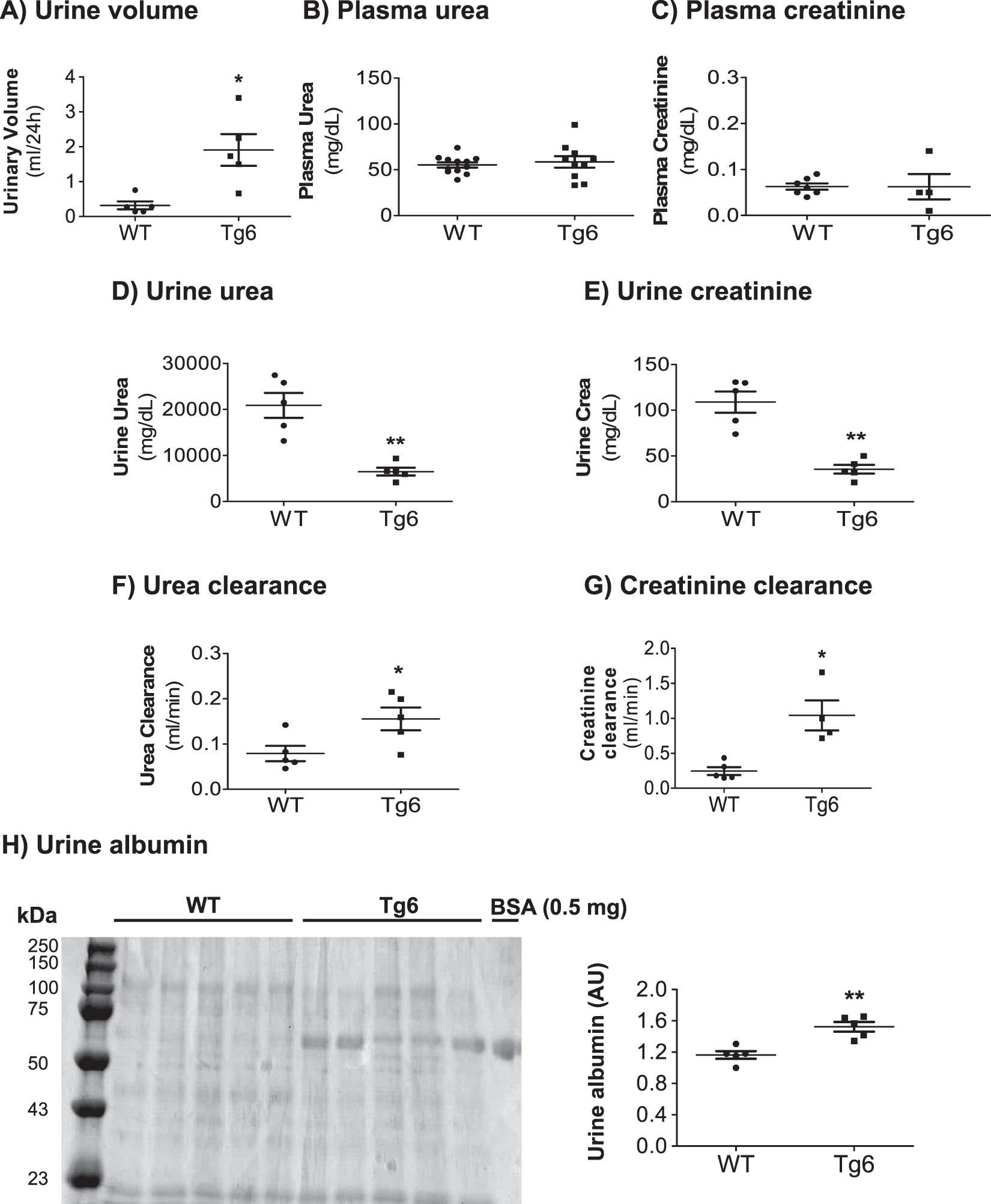

Markers of kidney function in Tg6 mice. Markers of kidney function were examined in 6–8 weeks old female Tg6 mice and their wildtype littermates: (A) urine volume per 24 hours, (B) plasma urea, (C) plasma creatinine, (D) urine urea, (E) urine creatinine, (F) urea clearance (ml/min), (G) creatinine clearance (ml/min), and (H) urine albumin excretion on a Coomassie blue stained gel with bovine serum albumin (BSA) as a positive control. Data are means ± s.e.m.; n = 5–12 for each group of mice. Significance was determined by unpaired t test and indicated as *p < 0.05, **p < 0.01.
