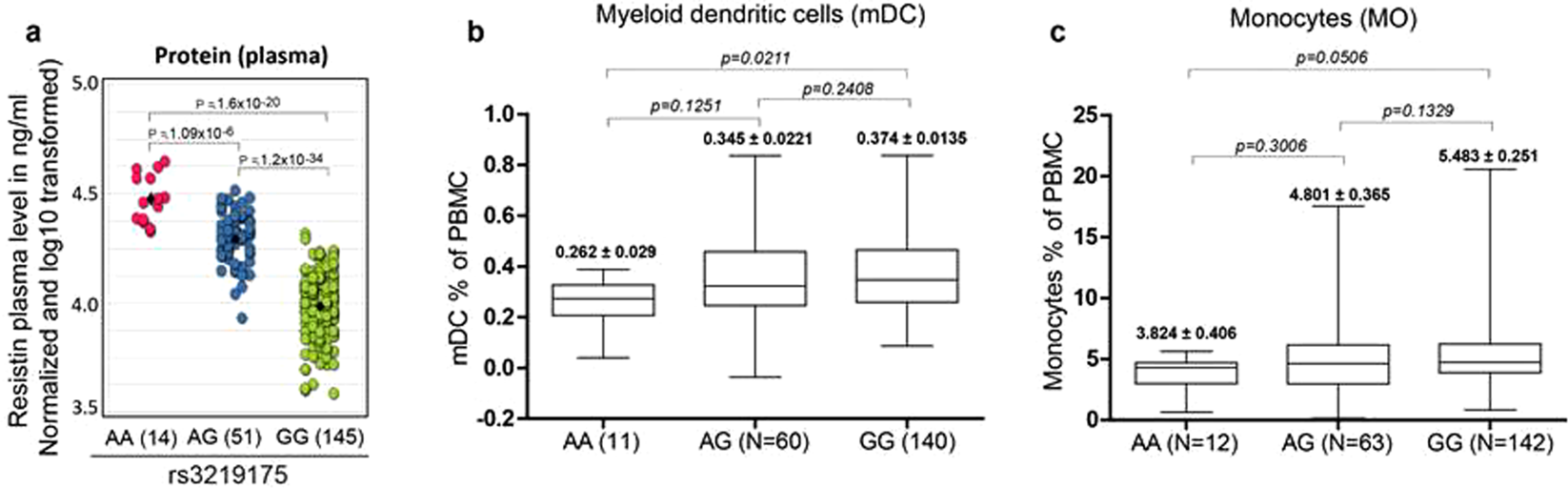

Figure 5
Correlation of rs3219175 with plasma proteins and myeloid cell counts. (a) Resistin plasma protein. The three genotype states of RETN SNP rs3219175 (AA, AG and GG) were correlated with the plasma protein concentration of resistin using data collected for the Singapore-Chinese cohort18,19. The y-axis represents the log10-transformed normalized plasma concentration (ng/ml), p value was calculated by using a linear regression model (matrix eQTL). Association with plasma proteins. (b,c) Association of rs3219175 with the myeloid cell count. The association of rs3219175 with the cell counts of mDC (middle panel) and monocytes (right panel) is shown. The whole blood samples of the Singapore-Chinese cohort were analyzed by FACS. The cell counts of the population defined by gating (Supplementary Fig. 9) are expressed as percentage of total PBMC. The average percentage of the cells as well as sample numbers for each genotype combination are indicated; statistical analysis was performed using Mann-Whitney unpaired t-test.
