Figure 3
From: Electromagnetic time-harmonic and static field polygonal rotator with homogeneous materials

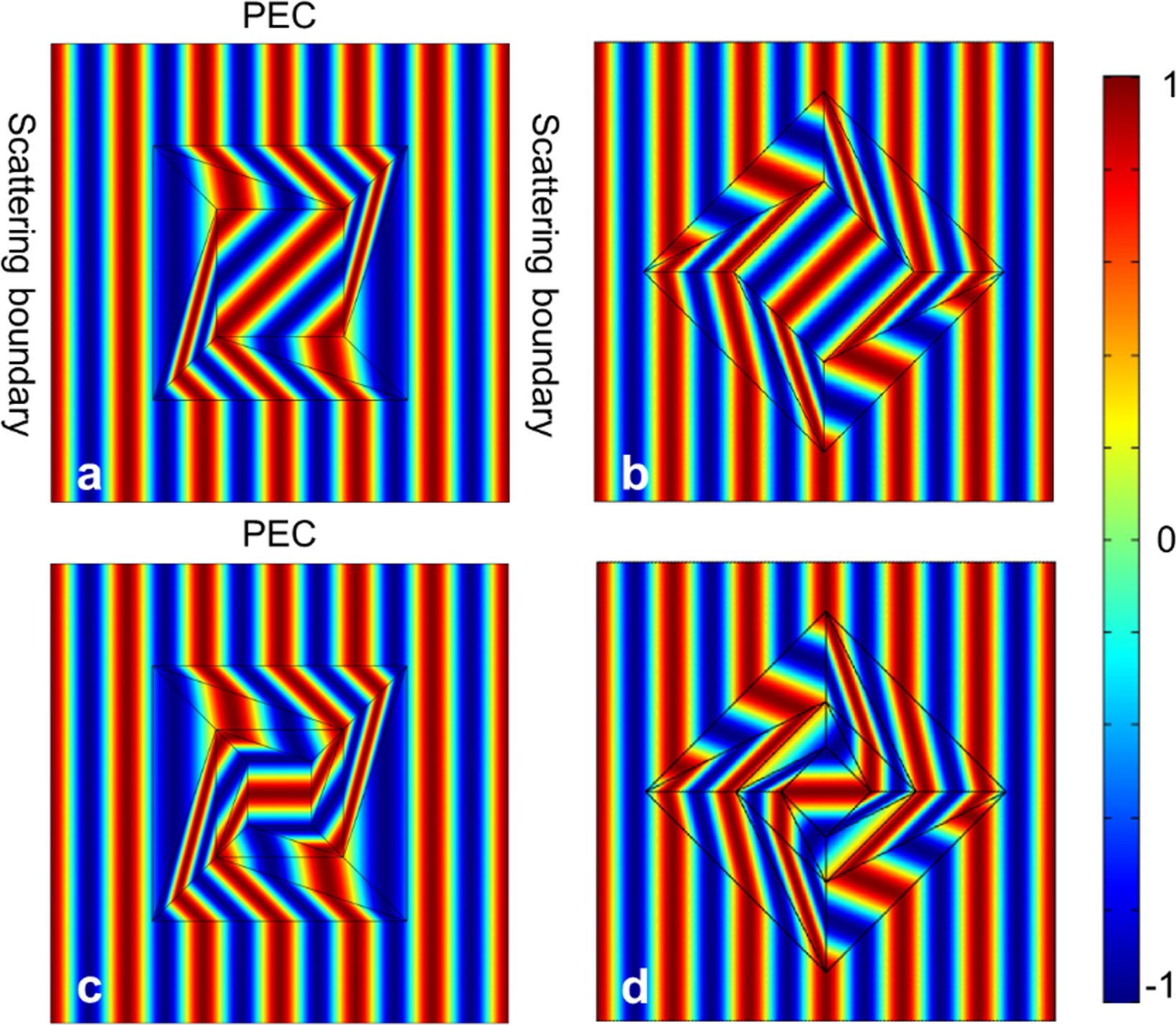

(a,b) The magnetic field distribution when an Hz polarized plane wave is incident along \(\hat{x}\) direction and \(\frac{\sqrt{2}}{2}\hat{x}+\frac{\sqrt{2}}{2}\hat{y}\) direction, respectively. (c,d) The magnetic field distribution of twofold rotator when an Hz polarized plane wave is incident along \(\hat{x}\) direction and \(a\frac{\sqrt{2}}{2}\hat{x}+\frac{\sqrt{2}}{2}\hat{y}\) direction, respectively.
