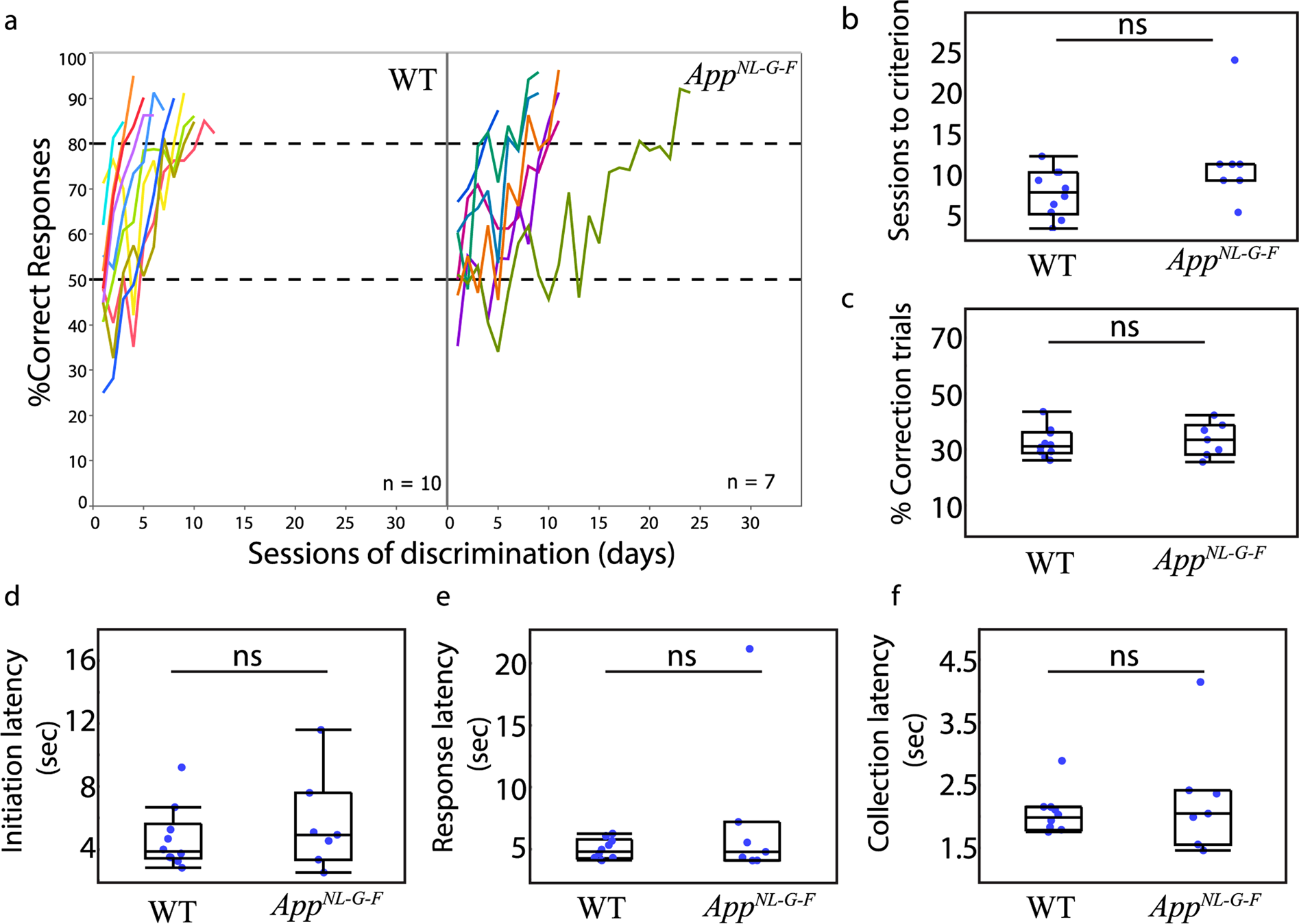

Figure 1
Acquisition of the visual discrimination (VD) touch-screen task in AppNL-G-F and WT mice. (a) Learning curves of mice during discrimination learning for WT (left panel) and AppNL-G-F (right panel) plotting percentage correct responses by sessions where each colored line represents an individual mouse. (b) Number of sessions to achieve learning criterions of two consecutive sessions of 80% correct or higher responses did not differ between WT and AppNL-G-F mice. (c) Percentage of correction trials did not differ between genotypes. Latencies, (d) to initiate trial, (e) response to the stimulus, (f) collect the reward did not differ between genotypes. In figures b, c, d, e, f data are represented in box plots with individual points for each subject. Statistically significance level at p < 0.05. ns: non-significant.
