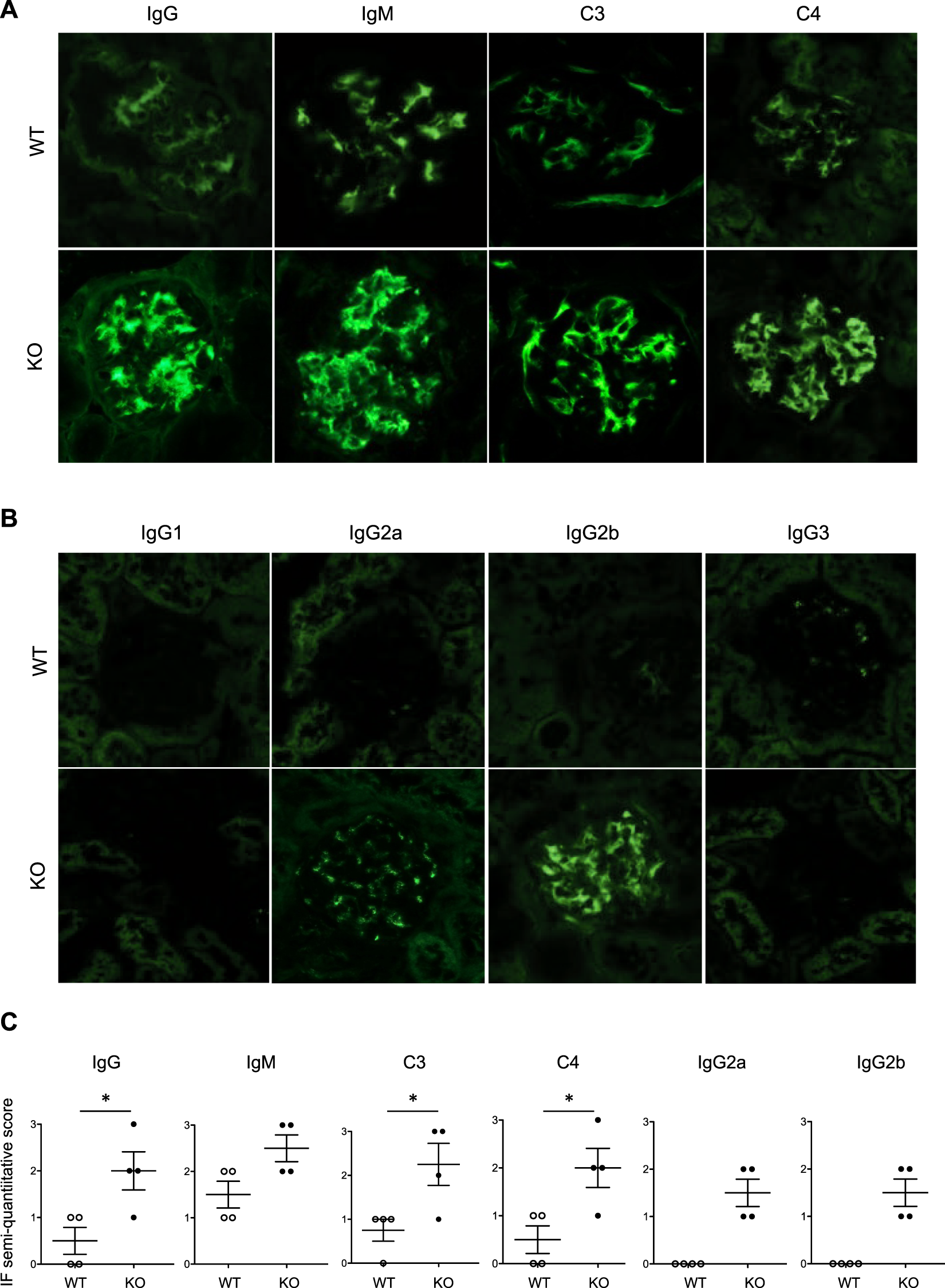

Figure 2
From: MicroRNA-146a-deficient mice develop immune complex glomerulonephritis
Immune complex glomerulonephritis in miR-146a−/− mice. Representative kidney cryosections of 12-month-old WT and KO mice stained with FITC-conjugated anti-mouse IgG, IgM, C3, and C4 antibodies (panel A) or IgG1, IgG2a, IgG2b and IgG3 antibodies (panel B) (original magnification x400). The staining was quantified using a quantification score ranging from 0 to 3+ (panel C).
