Figure 9

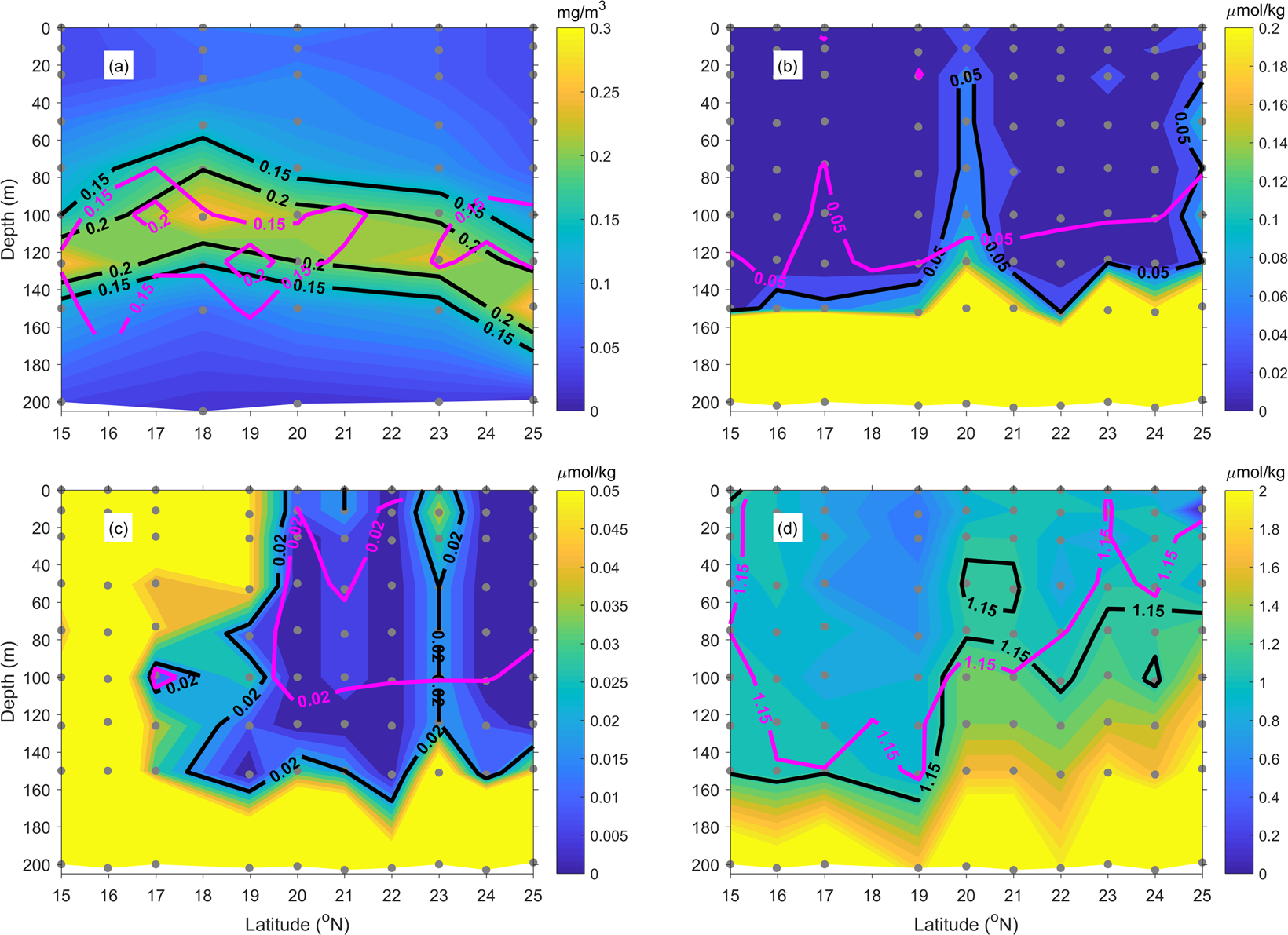

Vertical profiles of (a) CHL, (b) nitrate + nitrite, (c) phosphate and (d) silicate along the 165°E transect of JPBN CTD in June 2010. The purple contours show the climatology monthly mean of June according to the CTD data available from 2003 to 2012. The gray dots show the data points of profiles for plotting the contours.
