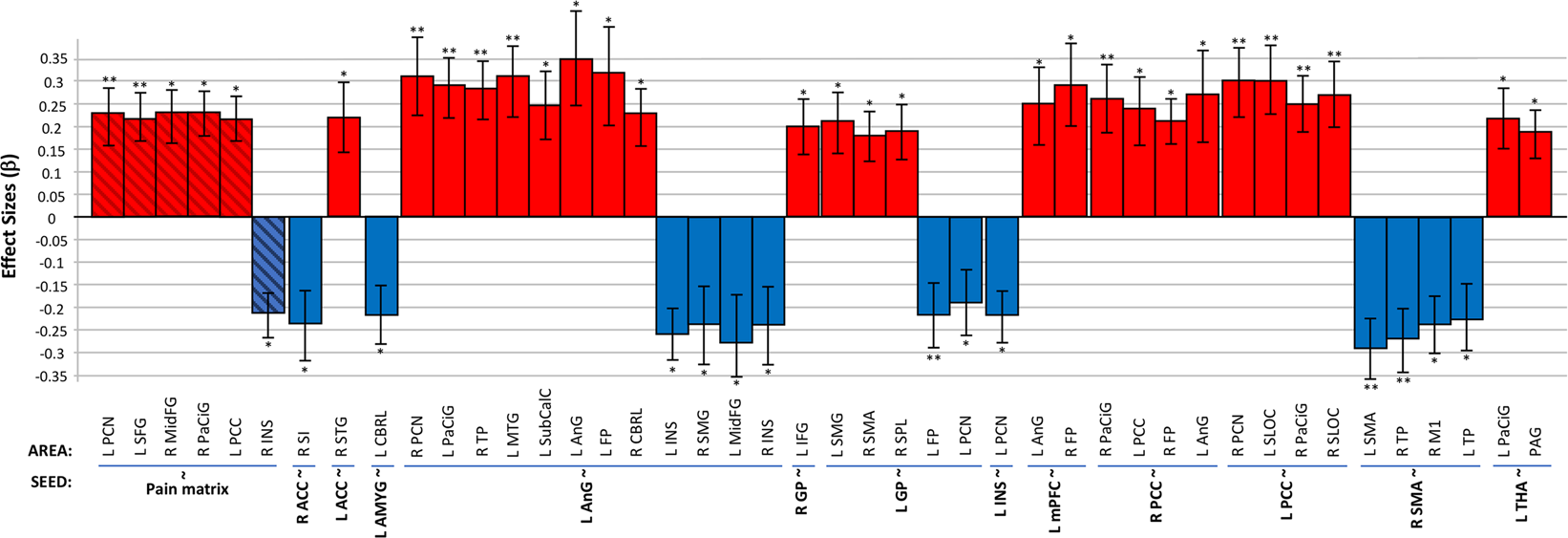

Figure 3
From: Functional connectivity of music-induced analgesia in fibromyalgia
Baseline Condition FM vs HC. Significant seed-to-voxel rs-FC of the pain matrix; positive effects represent higher connectivity; negative effects represent lower connectivity. FM, fibromyalgia; HC, healthy controls; L, left; R, right. Significant Seeds: Pain matrix (*34 seeds merged in an a priori mask); ACC, anterior cingulate cortex; AMYG, amygdala; AnG, angular gyrus; GP, globus pallidus; INS, insular cortex; mPFC, medial pre-frontal cortex; PCC, posterior cingulate cortex; SMA, supplementary motor area; THA, thalamus. Correlated areas: AnG, angular gyrus; CRBL, cerebellum; FP, frontal pole; IFG, inferior frontal gyrus; INS, insular cortex; SLOC, superior lateral occipital cortex; MTG, medial temporal gyrus; MidFG, middle frontal gyrus; PaCiG, paracingular gyrus; PAG, periaqueductal gray matter; M1, precentral gyrus (primary motor cortex); SI, postcentral gyrus (primary somatosensory cortex); PCN, precuneus; PCC, posterior cingulate cortex; SubCalC, subcallosal cortex; SMG, supramarginal gyrus; SFG, superior frontal gyrus; SPL, superior parietal lobe; SMA, supplementary motor area; TP, temporal pole. *p < 0.05, **p < 0.001. All analyzed contrasts were corrected for multiple comparisons using the false discovery rate (FDR) at 0.05.
