Figure 4
From: Production of recombinant soluble dimeric C-type lectin-like receptors of rat natural killer cells

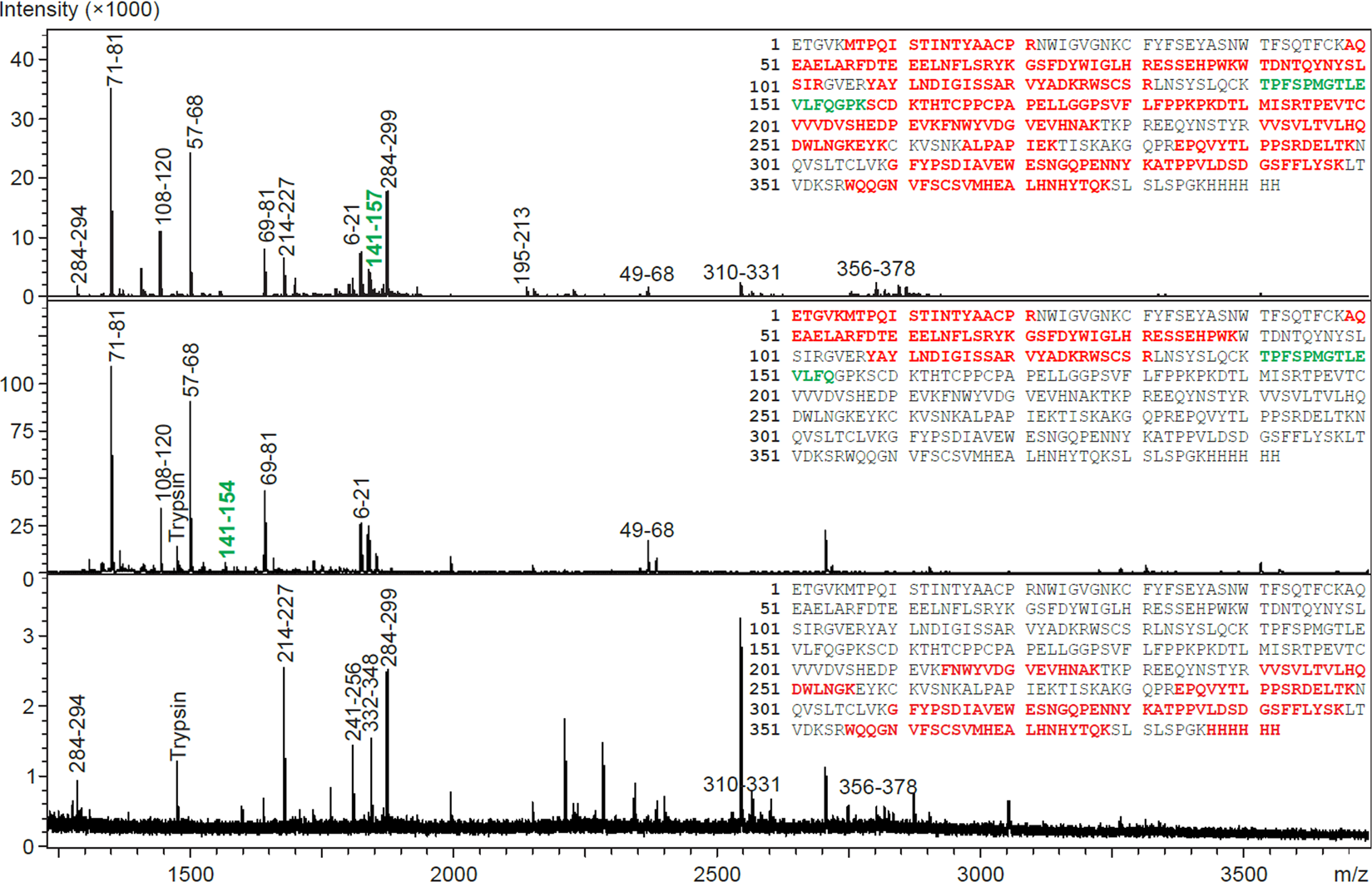

Mass spectrometry analysis of Clr-11-FcHis cleavage with HRV 3C protease. Reduced tryptic digests prepared from SDS-PAGE bands of Clr-11-FcHis (top), Clr-11 with the FcHis fusion cleaved off (middle) and the cleaved FcHis fusion (bottom) were analysed by MALDI-TOF/TOF mass spectrometry. Peptides identified in mass spectra are highlighted in red; peaks in mass spectra are labelled according to corresponding Clr-11-FcHis peptide sequences. The 3C protease cleavage site peptide TPFSPMGTLEVLFQ/GPK is highlighted in green.
