Figure 7
From: Production of recombinant soluble dimeric C-type lectin-like receptors of rat natural killer cells

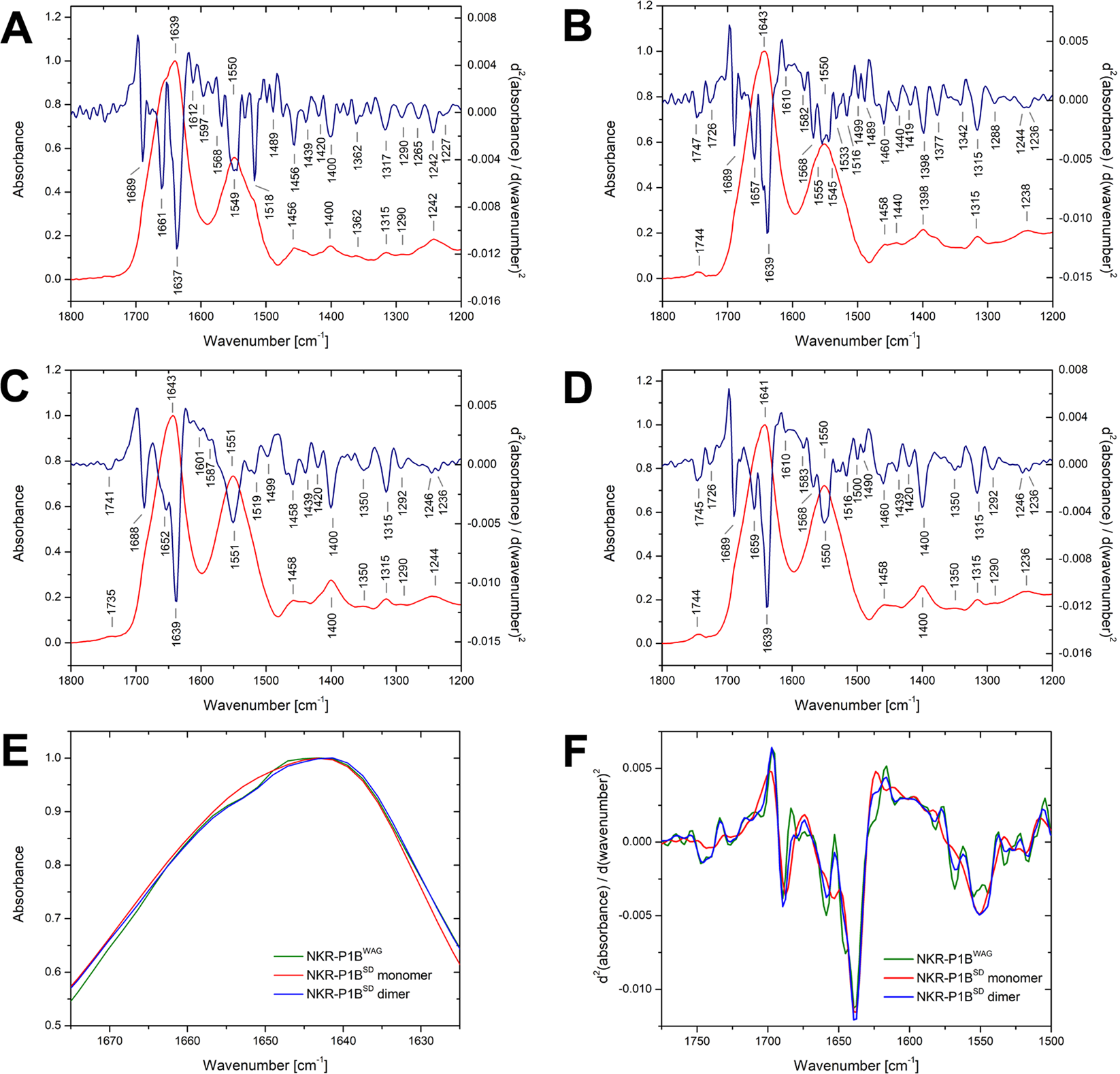

FTIR spectroscopy analysis of recombinant dimeric rat NK cell receptors. Fourier-transform infrared spectra of (A) Clr-11 cleaved from pHLsec-FcHis, (B) NKR-P1BWAG, (C) monomeric, and (D) dimeric NKR-P1BSD, all cleaved from pYD5 fusion constructs, in the region of amide I, II and III bands depicted as red curves. The blue line corresponds to the second derivative of the spectrum smoothed by Savitski-Golay function at 7 points; distinct spectral bands are labelled, and band assignment is outlined in Table 1. (E) Detailed comparison of the FTIR spectra and their (F) second derivatives for monomeric and dimeric NKR-P1BSD, and NKR-P1BWAG in the region of amide I and II bands.
