Figure 2

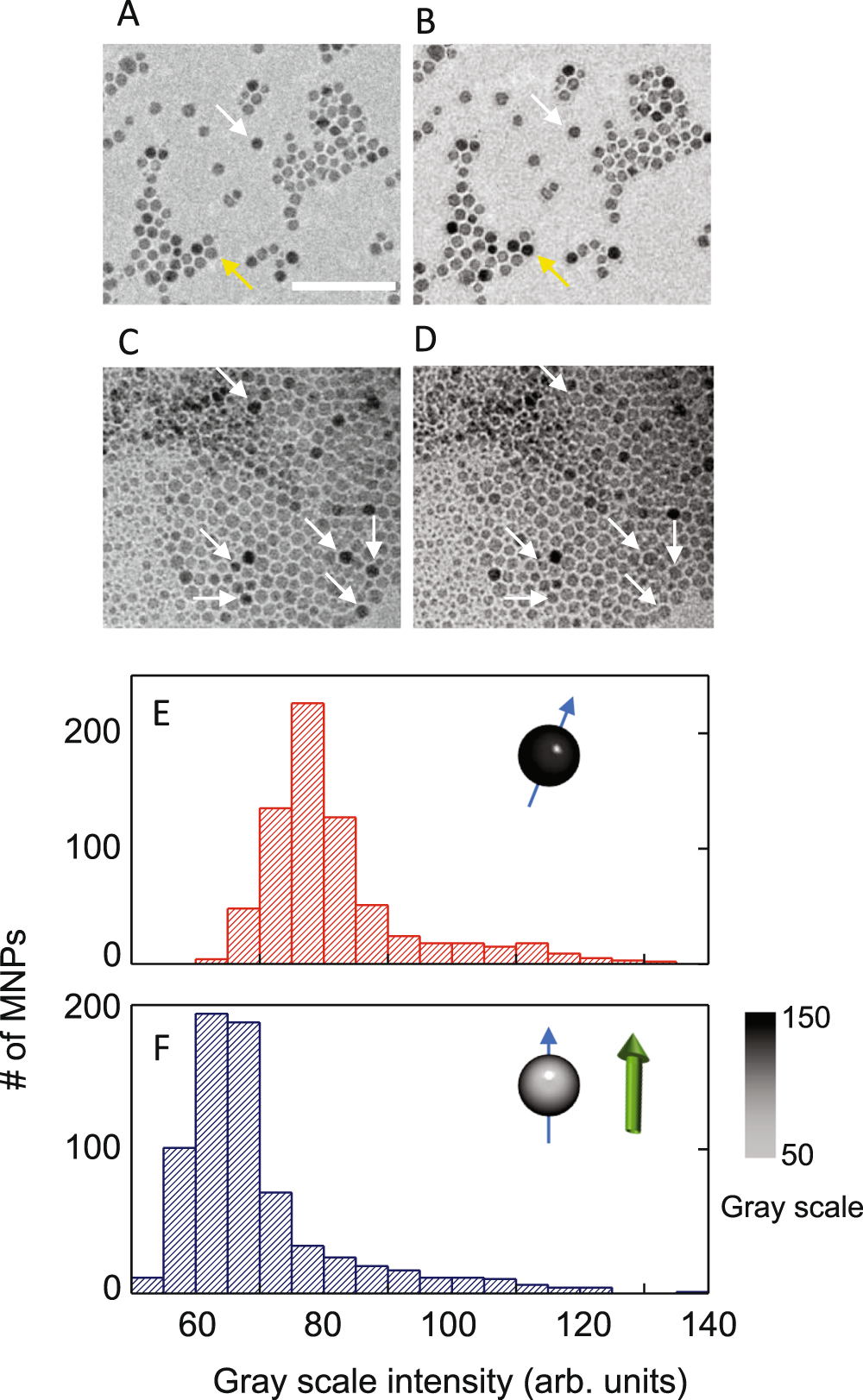

Lorentz TEM on drop cast 10 nm MNPs with (A) 0 and (B) 100 mT applied magnetic field. White arrow demarcates MNP whose scattering intensity decreases on the application of the magnetic field, and yellow arrow highlights the MNPs where the intensity increases. Scale bar: 100 nm. Similar imaging on MNPs dispersed in nematic LC with (C) 0 and (D) 100 mT field. The LC phase does not have an intentional alignment. Between C and D there are negligible MNPs whose scattering intensity increases, as the numerous white arrows indicate. Analysis of C and D TEM images plotting histograms of scattering intensity of MNPs in (E) for 0 field and (F) 100 mT applied field. The schematics in the inset represent a single MNP with its Bragg angle shown as a blue arrow. The direction of the applied field is shown by the green arrow.
