Figure 2
From: Nanoscale true random bit generator based on magnetic state transitions in magnetic tunnel junctions

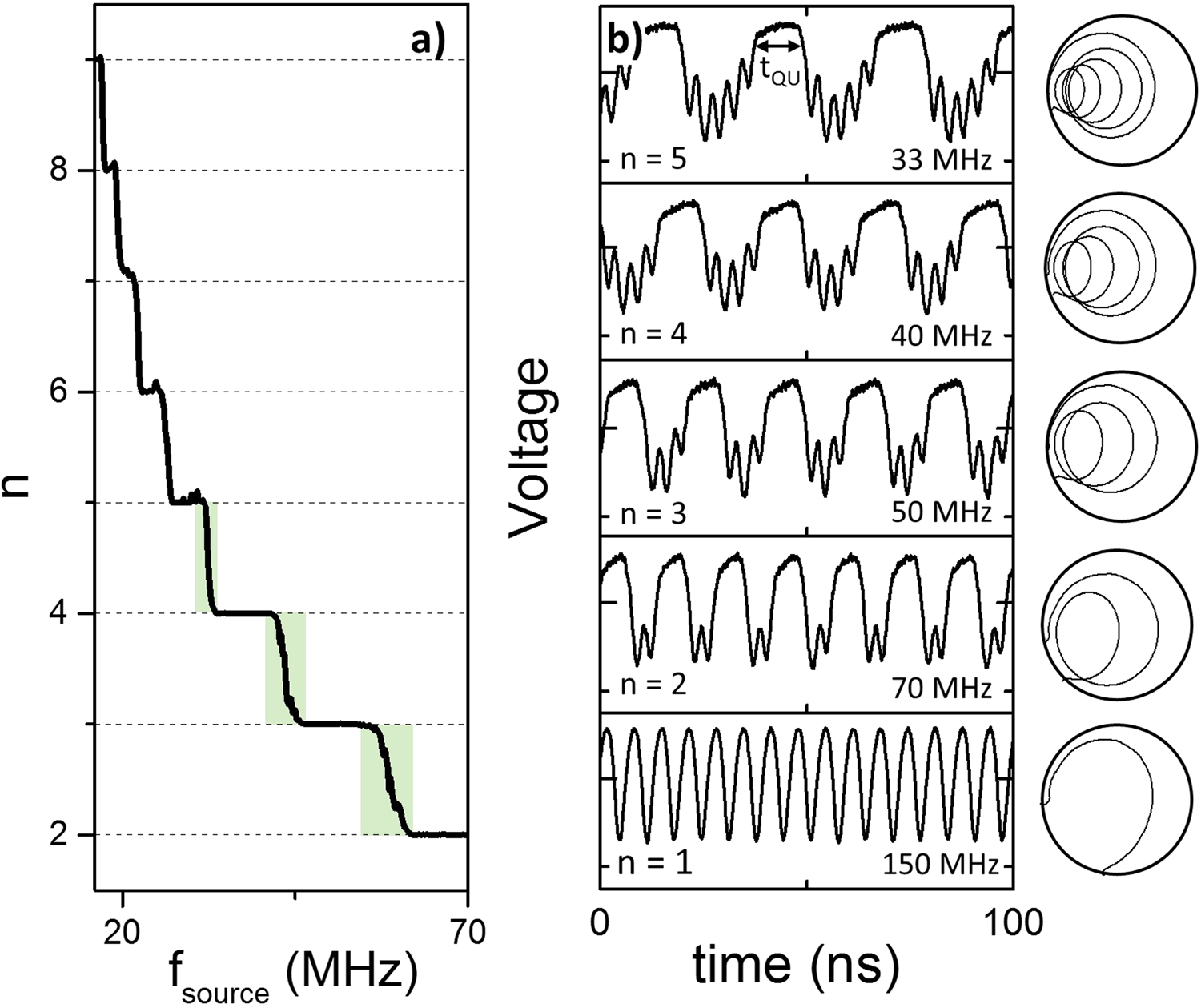

(a) number of gyrations, n, versus frequency and (b) the measured voltage as a function of time for five different excitation frequencies showing the discrete number of vortex core gyrations before expulsion, n. The trajectories of the vortex core on the right hand side are calculated from micromagnetic simulations.
