Figure 5
From: Gene expression profile of Aedes aegypti females in courtship and mating

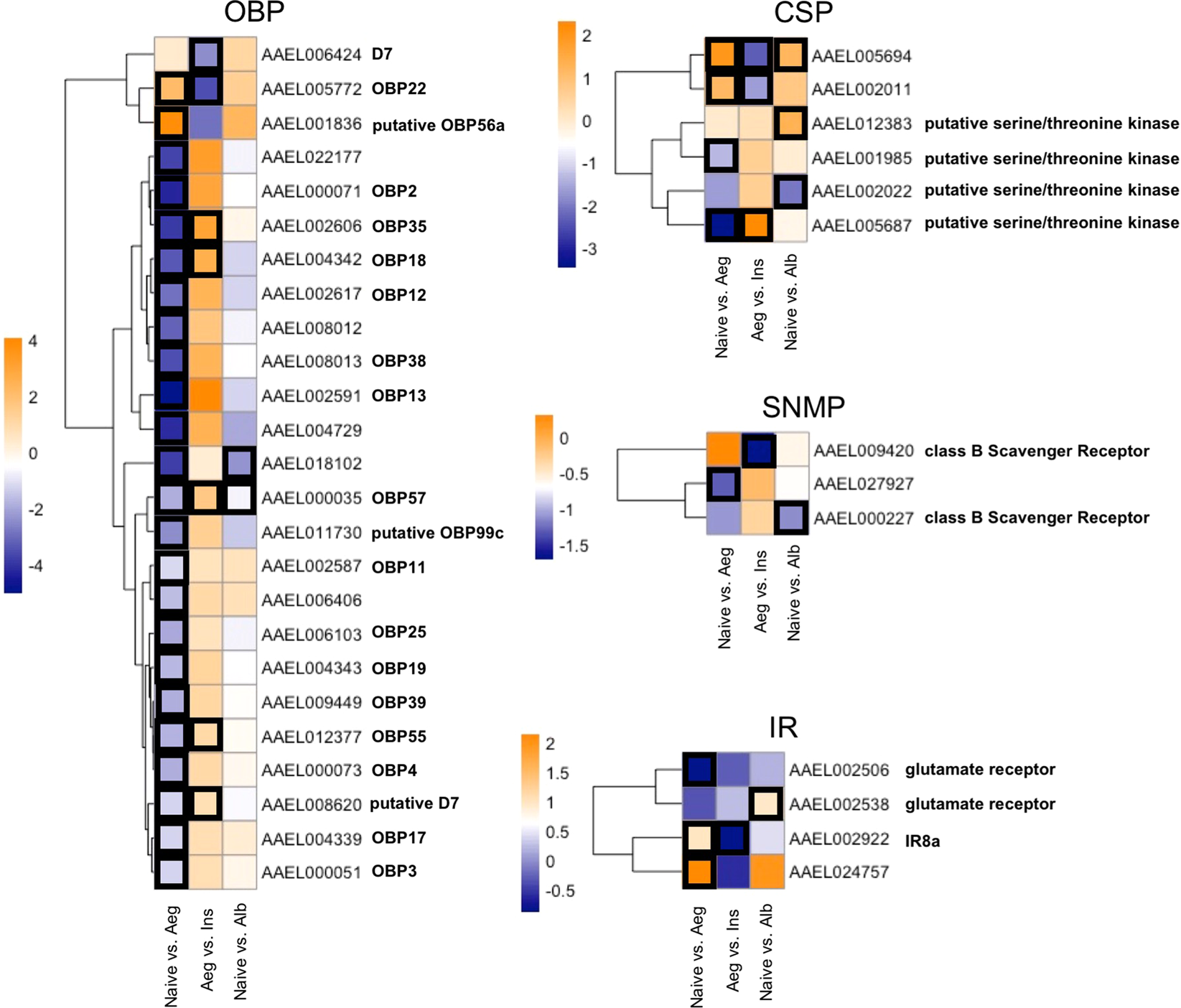

Heatmap of log2FC of chemosensory related gene families. Black boxes represent significantly regulated genes in each comparison. Only genes that were found significantly regulated for at least one of the comparisons are shown. OBP – odorant binding protein; CSP – chemosensory protein; SNMP - sensory neuron membrane protein; IR – ionotropic receptor.
