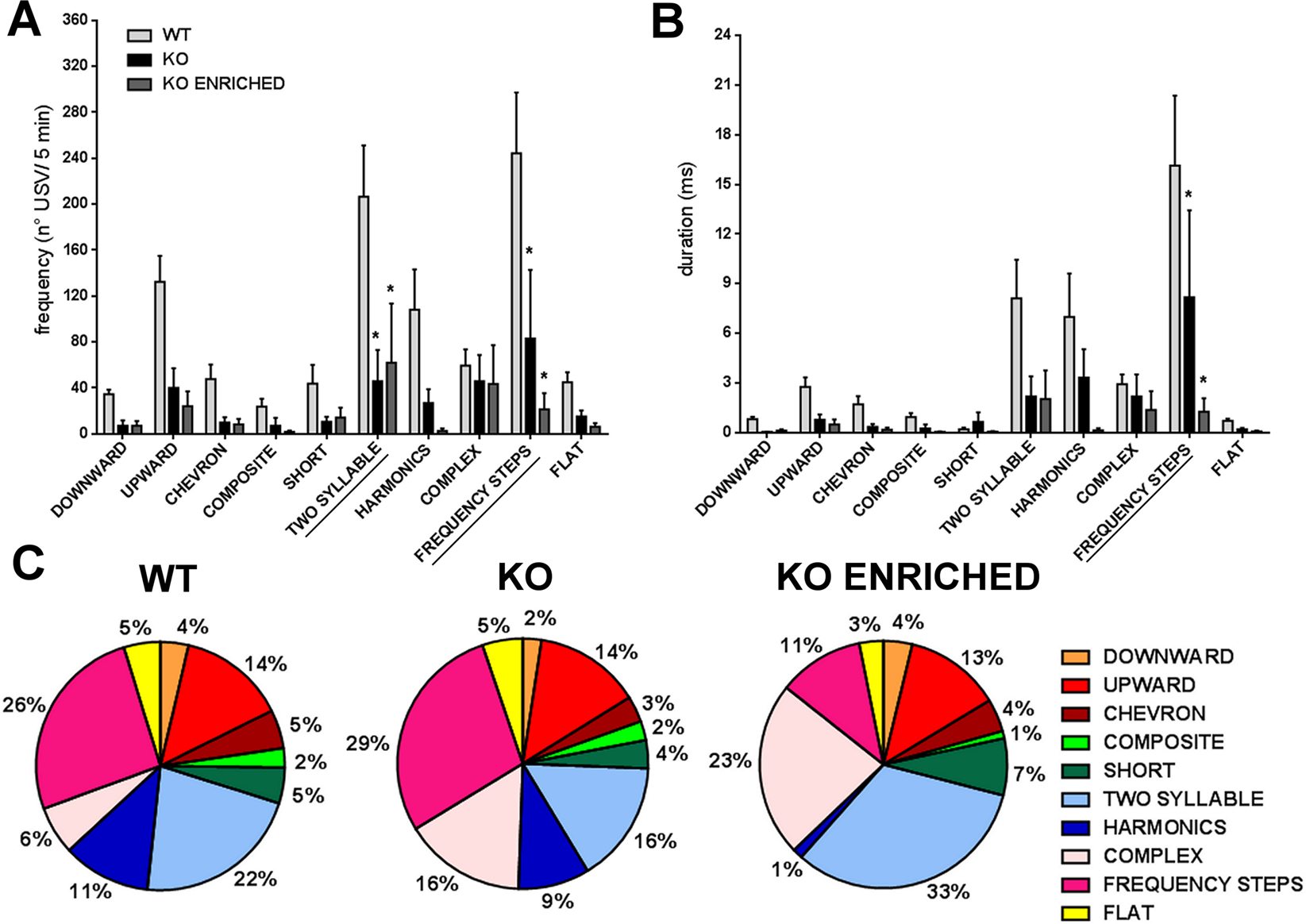

Figure 6
From: Specific profile of ultrasonic communication in a mouse model of neurodevelopmental disorders
Qualitative analysis of ultrasonic communication in WT, KO and KO ENRICHED adults. (A) Number and (B) duration of different calls categories of WT, KO and KO ENRICHED adult mice. Data are presented as mean ± S.E.M. N = 5 couples of WT, 6 couples of KO and 6 couples of KO ENRICHED. *p < 0.05 for KO and KO ENRICHED vs WT mice (Two-way ANOVA, followed by Sidak’s post-test analysis). (C) Proportion of different call typologies for genotype expressed as the percentages in pie graphs.
