Figure 3

From: Reconstructing Foveola by Foveolar Internal Limiting Membrane Non-Peeling and Tissue Repositioning for Lamellar Hole-Related Epiretinal Proliferation

Figure 3

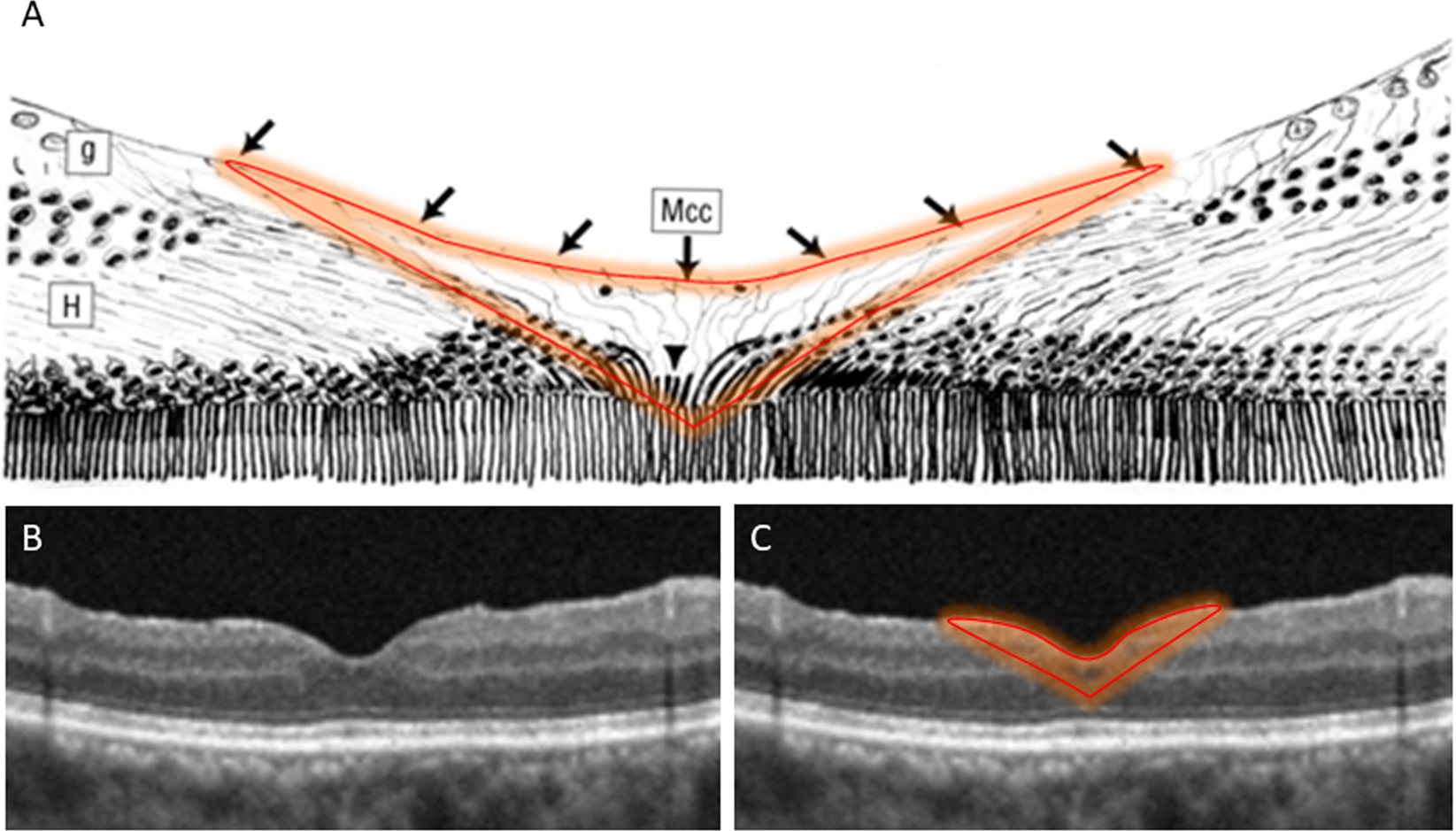

Schematic drawing of reconstruction of presumed Müller cell cones and foveolar architecture after foveolar internal limiting membrane non-peeling surgery in the case described in Fig. 1. (A) The orange outline denotes the Müller cell cones in the foveola originally described by Gass (1999) and Yamada (1969). (B) A postoperative OCT image of the case described in Fig. 1 without the Müller cell cones outlined. (C) A postoperative OCT image with the Müller cell cones outlined, highlighting reconstruction of Müller cell cones in the foveola. Mcc, Müller cell cones; g, ganglion cells; H, Henle’s fibres.
