Figure 1
From: Risk assessment of Ebola virus disease spreading in Uganda using a two-layer temporal network

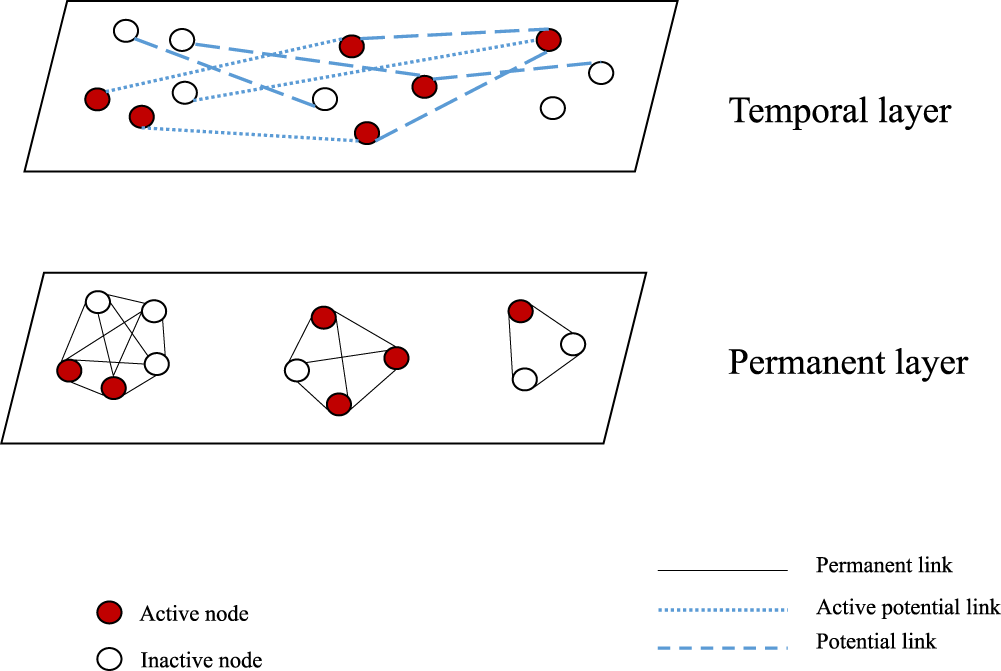

A generalized representation of the temporal network model at a specific time t –white circles represent inactive nodes while red circles represent active nodes. Separate rectangles represent two different layers. Dark solid lines show permanent links while dashed lines show links in the potential layer. A potential link becomes active following a Bernoulli distribution with the probability P0, when both ends of the link are active nodes.
