Figure 9
From: Risk assessment of Ebola virus disease spreading in Uganda using a two-layer temporal network

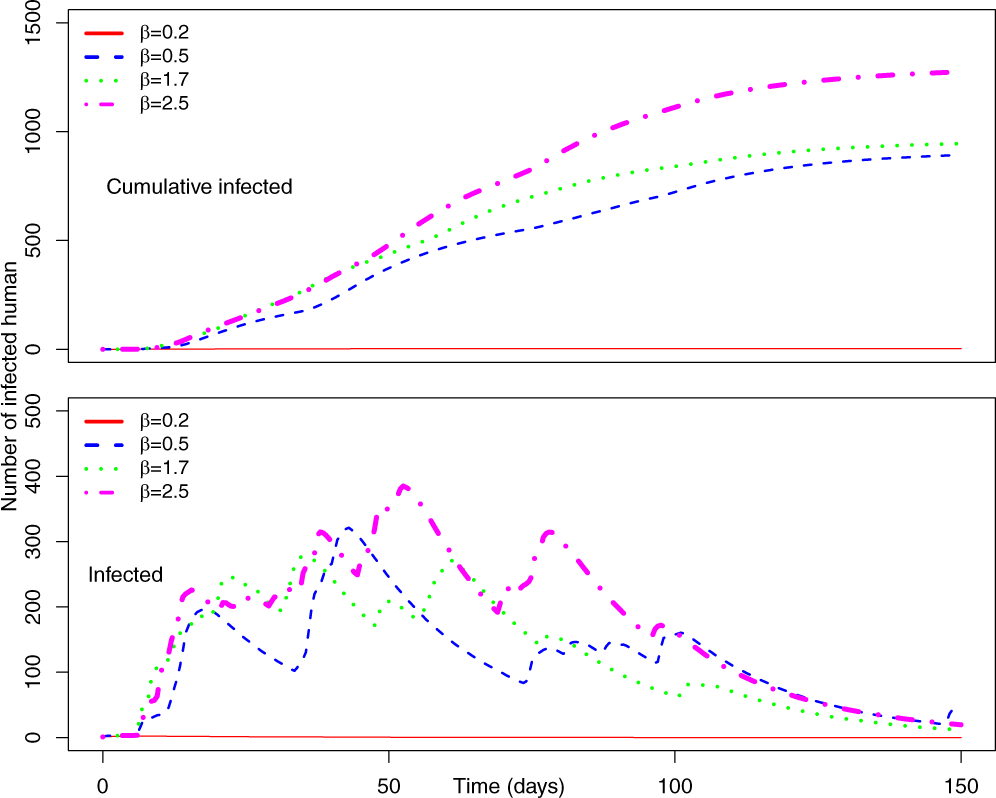

(Top) Average number of cumulative infected and (bottom) average number of infected humans in the Uganda Ebola network for P0 = 0.1, γ = 0.5 –four different colors represent the average number of infected humans for four values of β. Red, blue, green, and magenta lines correspond to the number of infected humans for β = 0.2, 0.5, 1.7, and 2.5, respectively.
