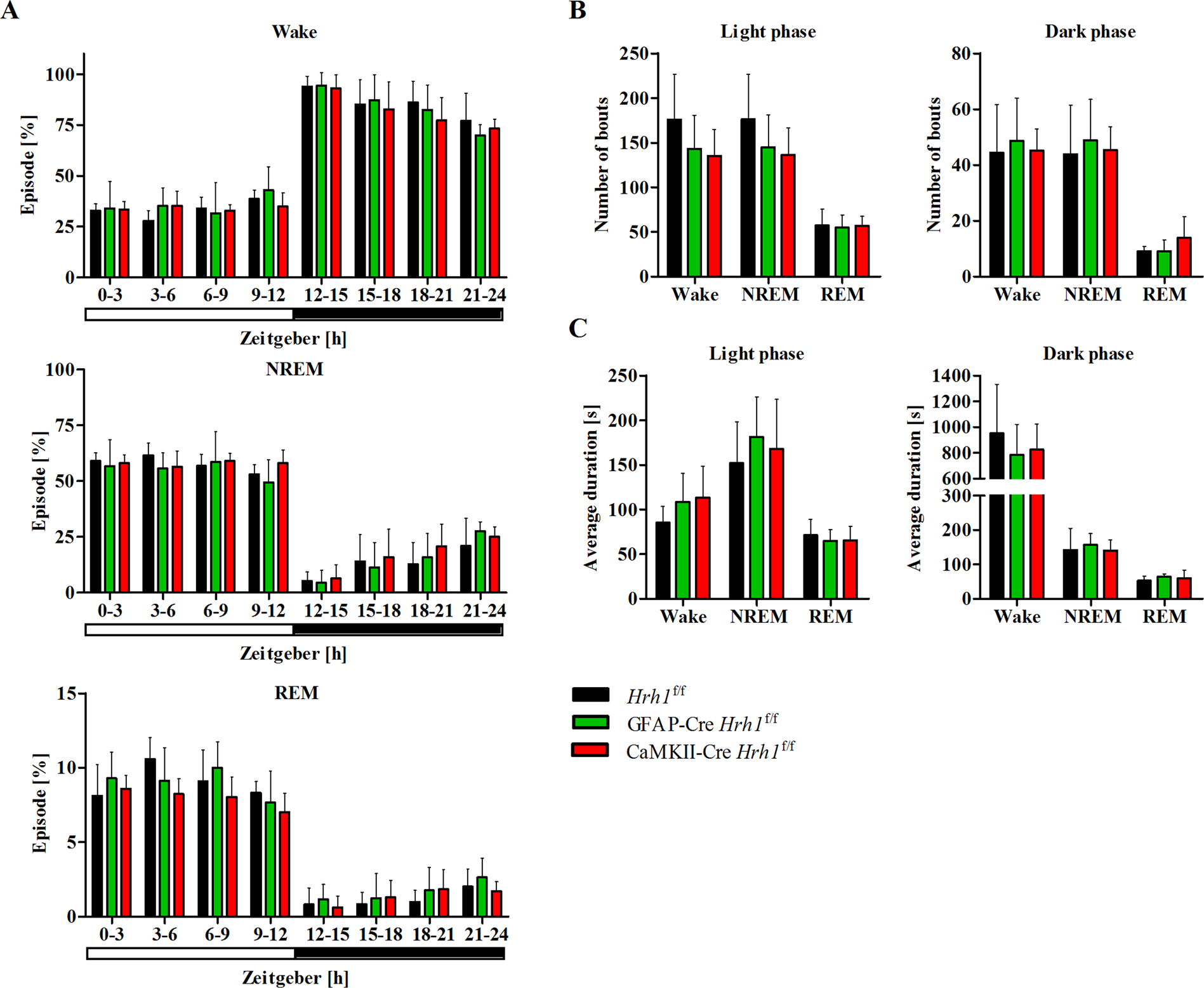

Figure 5
From: Histamine H1 receptor on astrocytes and neurons controls distinct aspects of mouse behaviour
Sleep-wake cycle was not affected by conditional Hrh1 deficiency. Results from 24 h EEG/EMG recordings of cKO and control mice. (A) Time spent in each stage averaged for 3-hour intervals (n = 6–7). (B) Graphs represent the number of bouts for each stage during the light (left) and dark (right) phase (n = 6–7). (C) Graphs represent the average duration of each stage during the light (left) and dark (right) phase (n = 6–7). All data were analysed with one-way ANOVA and Tukey’s post-hoc test.
