Figure 1 | Scientific Reports

Figure 1

From: Maxwell Fisheye Lens Based Retrodirective Array

Figure 1

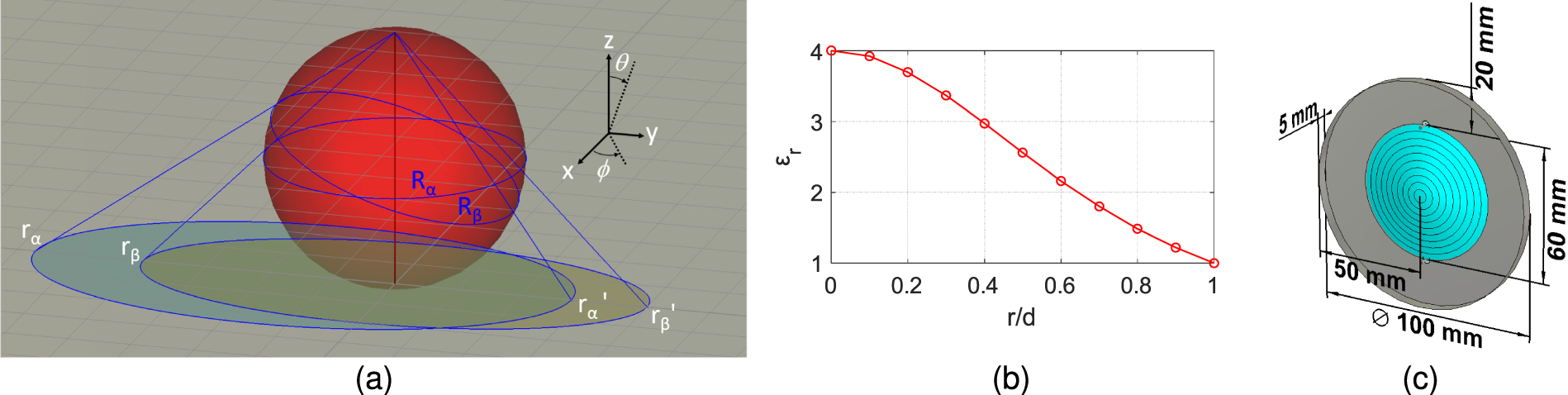

(a) Stereographic projection of great circles Rα and Rβ from sphere to their footprints on xy-plane. Great circle Rβ is tilted by an angle θ. (b) Theoretical permittivity profile of fisheye lens (c) Lens schematic when d = 5mm and r = 30 mm and R = 1.97r (top conducting sheet is removed).
